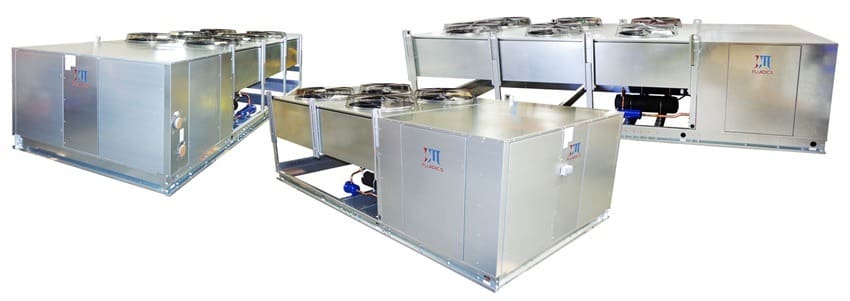

Air-Cooled Semi-Hermetic Chillers
Availability
- Cooling Capacities From 16 Tons To 88 Tons
- Dual Copeland Semi-Hermetic Compressors
- LCD Touchscreen Controller
Standard Features (All Models)
- ETL listed to UL1995 & CAN/CSA C22.2 No. 236-11, 4th edition, 10/14/2011
- Single Point Power Connection
- Idec Microprocessor Controller With Easy-To-Use HMI Touchscreen Display
- Stainless Steel, Brazed Plate Evaporator
- Semi-Hermetic Compressor With Crankcase Heater and Vibration Spring Mounting Kit
- Compressor Discharge and Suction Pipe Vibration Eliminators
- Suction Accumulator
- Liquid Sight-Glass, Solenoid, TXV and Replaceable Core Drier
- Water Flow Switch
- 24V Control Transformer
- Fan cycle control (+40°F)
- Direct Drive Condenser Fan Motor
- Rust Resistant, High CFM, Aluminum Condenser Fan Blade
- Condenser(S): Copper Tube/Aluminum Fin, Floating Tube T M
- 5-Year Condenser Warranty Against Tube Sheet Leaks
- Compressor Motor Contactor
- Individual Condenser Motor Contactors and Fusing
- Condenser Control Panel With Factory Mounted Door Interrupt
- Disconnect Switch
- Galvanized Steel Sheet Metal Cabinet
- 1/2 Inch Insulation on All Water and Refrigerant Lines
- Operating Refrigerant Charge From Factory
Split System Models Only
- Outdoor Condenser Section
- Discharge and Liquid Line Ball Valves on Indoor and Outdoor Equipment
Available Options (Most Models)
- Remote Idec touchscreen control panel
- Industrial VPN Router
- 5-Port Ethernet Switch
- BacNet Gateway
- Process Pump VFD Controller
- 4-Year Extended Compressor Warranty
- 115-Volt (Rain-Tight) Service Outlet
- Non-Fused Disconnect
- Phase Monitor, Line Voltage Monitor Offering Protection Against Phase Loss/Reversal, Unbalance And Hi/Lo Voltage
- Compressor Fusing
- Compressor Sound Cover
- Flooded Cond. W/Receiver/Head Pressure Control (0°F)
- Heated, Flooded Cond. W/Receiver/Head Pressure Control (-20°F)
- Factory Installed Evaporator Heat Tape Freeze Protection
- Fused, Stainless Steel Process Pump
- Dual Process Pump With Manual Changeover
- Dual Process Pump With Auto Changeover
- Pump Suction Isolation Valve
- Water Pressure Gauge Set
- Water Flow Meter
- Copper Finned Condenser Coil (Coastal Protection)
- Bohnguardt M Coated Condenser Coil (Coastal Protection)
- Epoxy or Phenolic Coated Fins (Coastal Protection)
- Auto City Water Make-Up Solenoid
- Stainless Steel, Sch80 PVC or Polypropylene Piping for Deionized and Reverse Osmosis Water Systems
Tank Models Only
- Storage Tank Sight Glass
- Tank Low Liquid Level Indicator
Model
PSA45D (Open Cabinet showing Control Panel)
J&M Fluidics Chiller Models – Data Sheet Downloads
Model
PSA62D

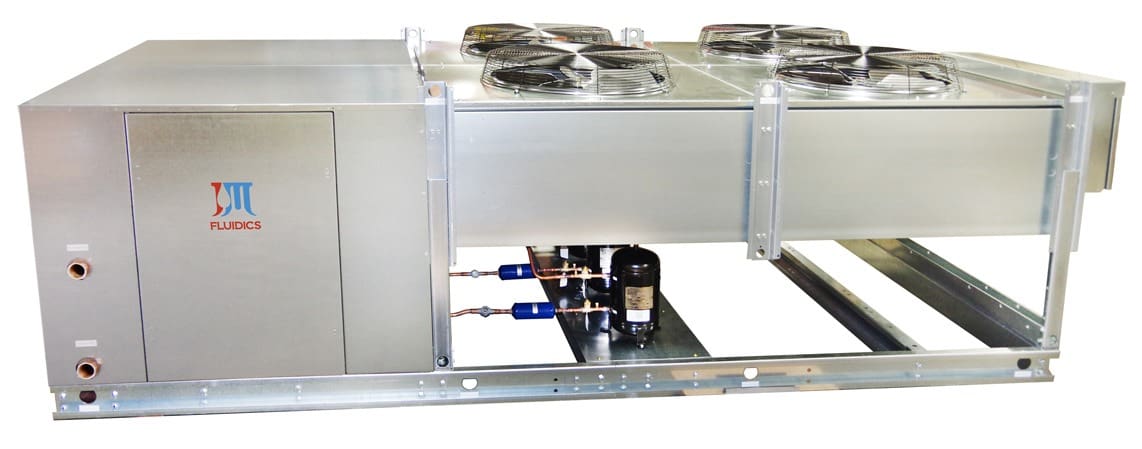

Model
PSA45D
Model
PSA62D
Model
PSA62D
Air-Cooled Process Chillers, Packaged
Dual Circuit Semi-Hermetic, Tankless
Air-cooled process chiller capacities based on ARI standard 45°F LWT and 95°F AMB.
Air-Cooled Process Chillers, Split-System,
Dual Circuit Semi-Hermetic, Tankless
Air-cooled process chiller capacities based on ARI standard 45°F LWT and 95°F AMB.
Split-System Chillers — Air-Cooled Semi-Hermetic
Model
IESA33D (Inside Chiller)

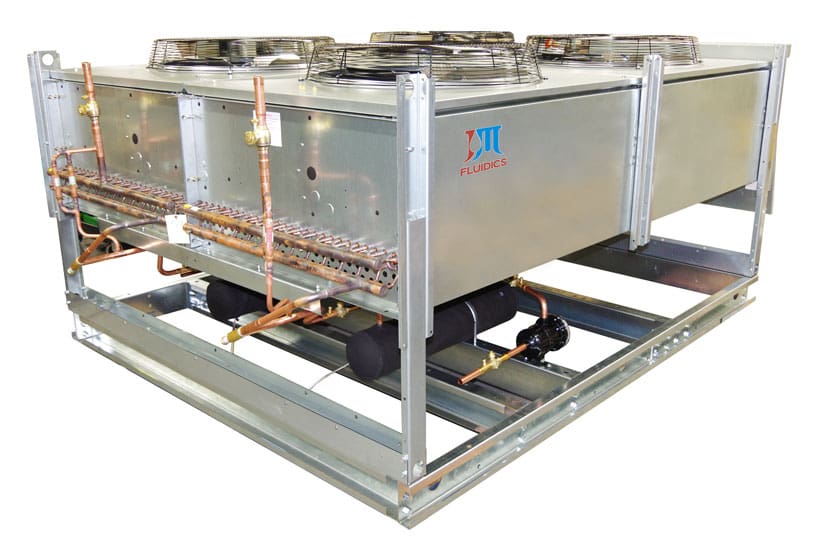

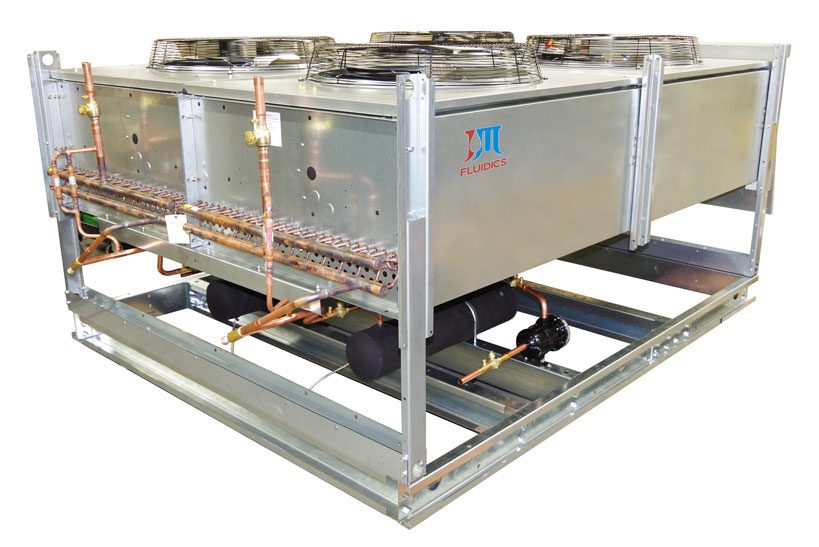

Model
OC33D (Outside Condenser)
