Portable Air- & Water-Cooled Chillers

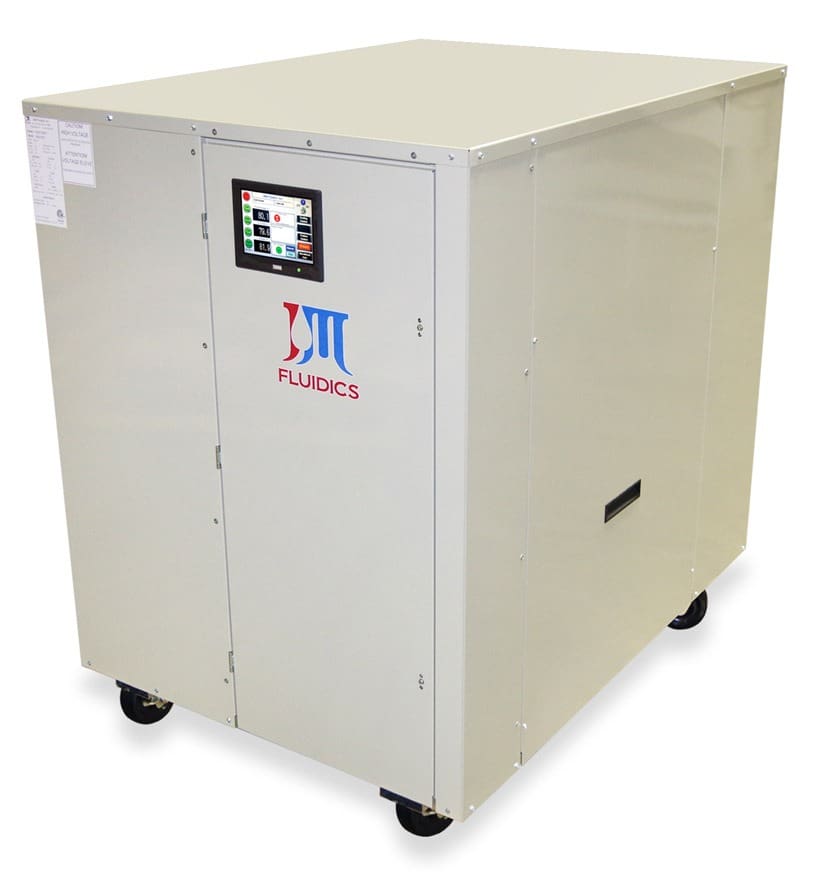

Chiller Model
PZWPT3S

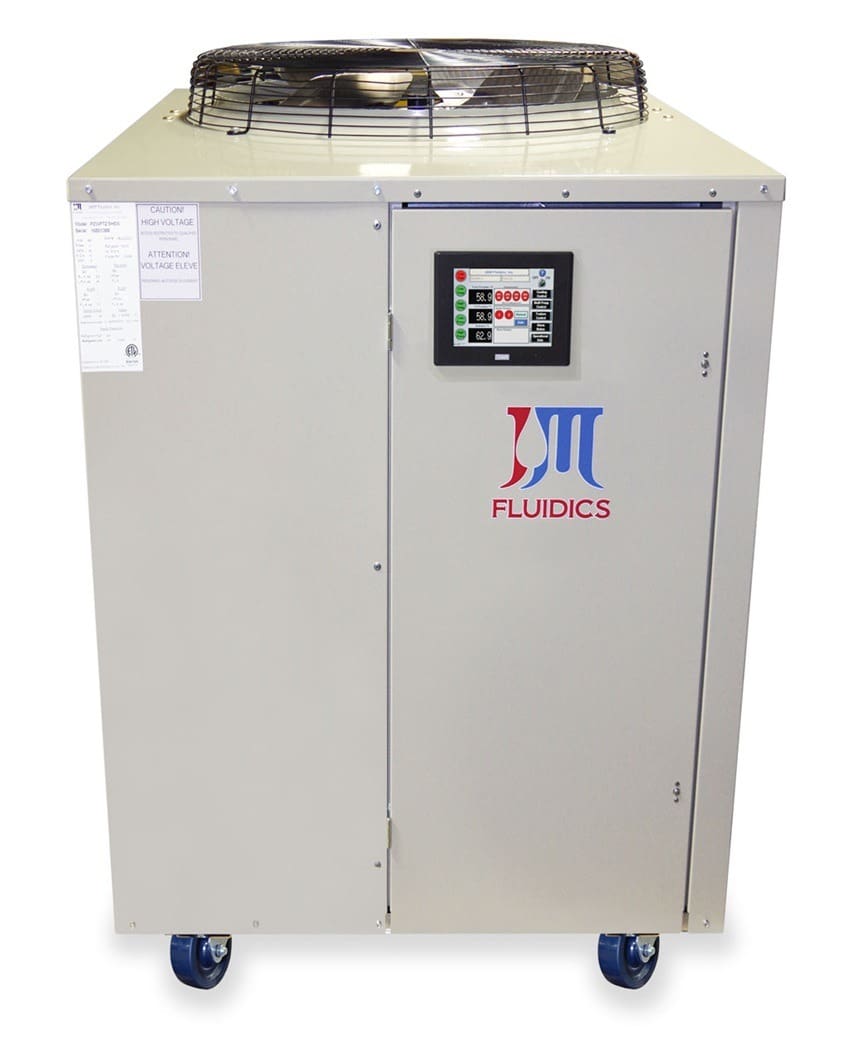

Chiller Model
PZAPT4S
Chiller Model

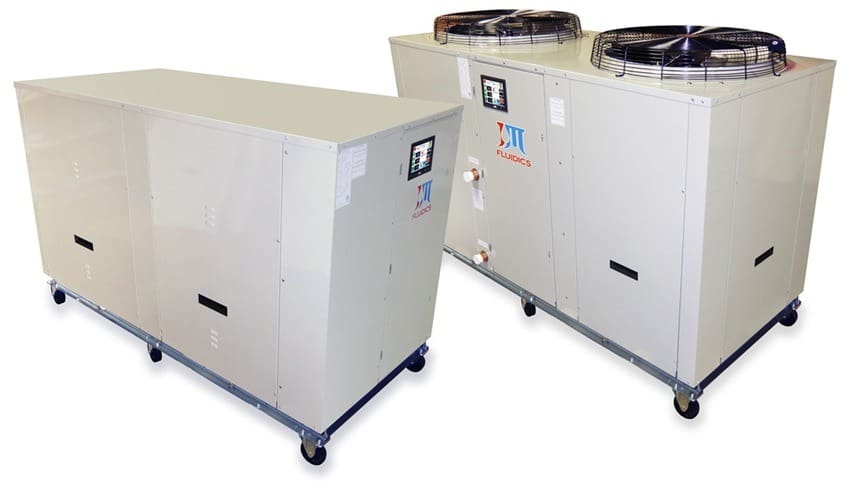

PZWPT9S
Chiller Model
PZAPT11S
STANDARD ON ALL J&M MODELS
Pentra Microsmart, Programmable Logic Controller (PLC) with HMI Touch Screen Display.
Standard Features (All Models)
- 1 to 11 Nominal Tons
- ETL listed to UL1995 & CAN/CSA C22.2 No. 236-11, 4th edition, 10/14/2011
- Single Point Power Connection
- Idec Plc Controller With Easy-To-Use Touch Screen Display
- Stainless Steel, Brazed Plate Evaporator
- Scroll Compressor With Crankcase Heater
- Suction Accumulator
- Noncorrosive Polyethylene Storage Tank With 1/2” Insulation
- Fused, Stainless Steel Process Pump With Discharge Ball Valve
- Low Flow By-Pass Valve
- Water flow switch
- Hot Gas Bypass Capacity Control
- 24V Control Transformer
- Fan Cycle Control (+40°F) (Air-Cooled)
- Direct drive condenser fan motor (Air-Cooled)
- Rust resistant, high CFM, aluminum condenser fan blade
- Condenser (Air cooled): copper tube/aluminum fin
- Condenser (Water cooled): Coaxial Steel tube / Copper tube
- Compressor motor, Condenser Fan, and Process Pump Contactors
- Condenser Motor, Process Pump, and Control Circuit Fusing
- Casters (Factory Mounted)
- Painted (Powder Coated), Galvanized Sheet Metal Cabinet
- 1/2” Insulation on All Water and Low-Pressure Refrigerant Lines
- Liquid Line Drier, Sight Glass, Solenoid, TXV
- Complete Refrigerant Charge From Factory
Available Options (Most Models)
- Copeland Digital Scroll Compressor
- Remote Idec touchscreen control panel
- Industrial VPN Router
- 5 Port Ethernet Switch
- BacNet Gateway
- Process Pump VFD Controller
- 4-Year Extended Compressor Warranty
- E-Coat Condenser Coating (Air Cooled Models)
- 115 volt (rain tight) service outlet
- Fused Disconnect
- Non Fused Disconnect
- Phase Monitor, Line Voltage Monitor Offering Protection Against Phase Loss/Reversal, Unbalance And High/Low Voltage
- Compressor Fusing
- Compressor Sound Cover
- Factory-Installed Evaporator Heat Tape Freeze Protection
- Process Pump Suction Isolation Valve
- Water Pressure Gauge Set
- Stainless Steel, SCH80 PVC Or Polypropylene Piping For De-Ionized And Reverse Osmosis Water Systems
- Storage Tank Sight Glass
- Tank Low Fluid Level Indicator
- Tank Auto City Water Make Up Solenoid & Auto Level Switch
- Condenser Water Regulating Valve (Water Cooled Models)
- Coastal Powder Coat Paint Protection
- Custom Powder Coat Paint Color Scheme
(Company Colors & more)
J&M Fluidics Chiller Models – Data Sheet Downloads

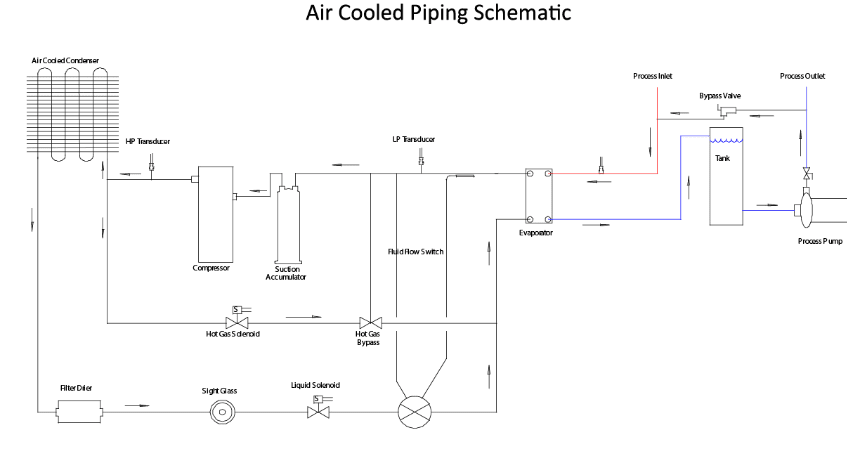

Air-Cooled Weiss Series Chillers
| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| PZAPT1S | 13,600 | 34 | 34 | 49 | 400 | 1 | 1.3 |
| PZAPT1.5S | 20,400 | 36 | 34 | 49 | 410 | 1 | 2.0 |
| PZAPT2S | 26,400 | 36 | 34 | 49 | 415 | 1 | 2.5 |
| PZAPT2.5S | 32,300 | 36 | 34 | 49 | 415 | 1 | 3.5 |
| PZAPT3S | 43,200 | 36 | 34 | 49 | 425 | 1 | 4.0 |
| PZAPT4S | 53,300 | 46 | 34 | 53 | 500 | 1 | 6.0 |
| PZAPT6S | 67,200 | 46 | 34 | 53 | 600 | 1 | 8.0 |
| PZAPT7S | 86,400 | 75 | 34 | 55 | 800 | 1 | 9.0 |
| PZAPT8S | 97,200 | 75 | 34 | 55 | 850 | 1 | 10.0 |
| PZAPT9S | 106,800 | 75 | 34 | 55 | 875 | 1 | 11.0 |
| PZAPT11S | 141,600 | 75 | 34 | 55 | 875 | 1 | 12.0 |
Air-cooled process chiller capacities based on ARI standard 45°F LWT and 95°F AMB.

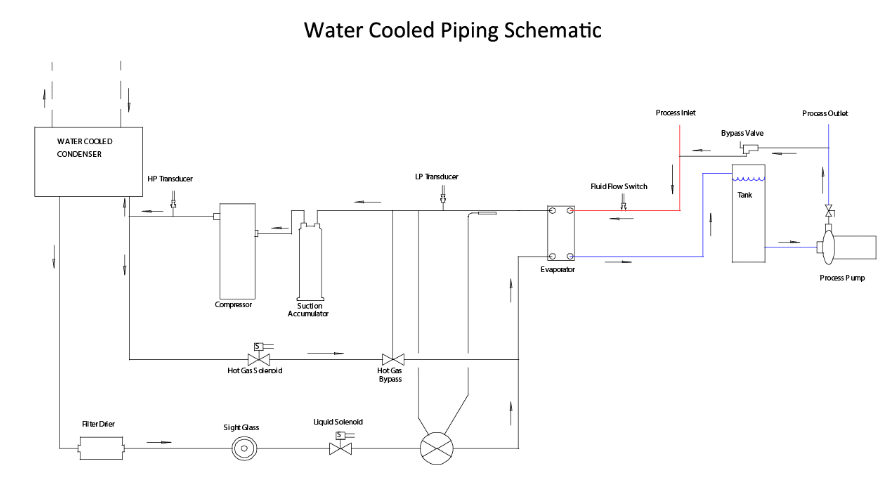

Water-Cooled Weiss Series Chillers
| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| PZWPT1S | 14,640 | 36 | 34 | 41 | 350 | 1 | 1.3 |
| PZWPT2S | 27,600 | 36 | 34 | 41 | 360 | 1 | 2.5 |
| PZWPT2.5S | 41,000 | 36 | 34 | 41 | 365 | 1 | 3.5 |
| PZWPT3S | 46,000 | 36 | 34 | 41 | 375 | 1 | 4.0 |
| PZWPT4S | 58,800 | 36 | 34 | 41 | 425 | 1 | 5.0 |
| PZWPT5S | 72,500 | 46 | 34 | 41 | 450 | 1 | 6.0 |
| PZWPT7S | 91,700 | 34 | 34 | 41 | 750 | 1 | 8.0 |
| PZWPT8S | 102,500 | 36 | 34 | 42 | 775 | 1 | 9.0 |
| PZWPT9S | 121,500 | 36 | 34 | 42 | 800 | 1 | 10.0 |
| PZWPT11S | 151,000 | 36 | 34 | 42 | 825 | 1 | 12.0 |
Water-cooled process chiller capacities based on ARI standard 45°F LWT and 105°F condensing temp.

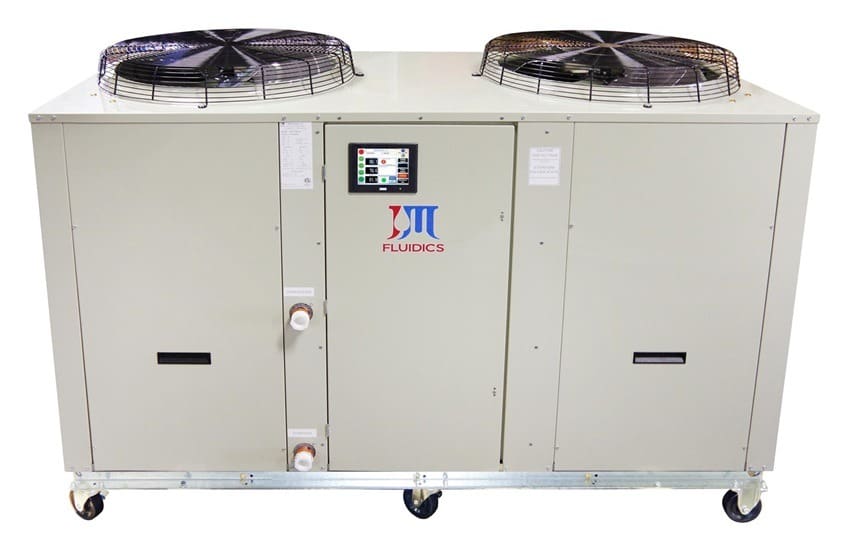

Chiller Model Shown

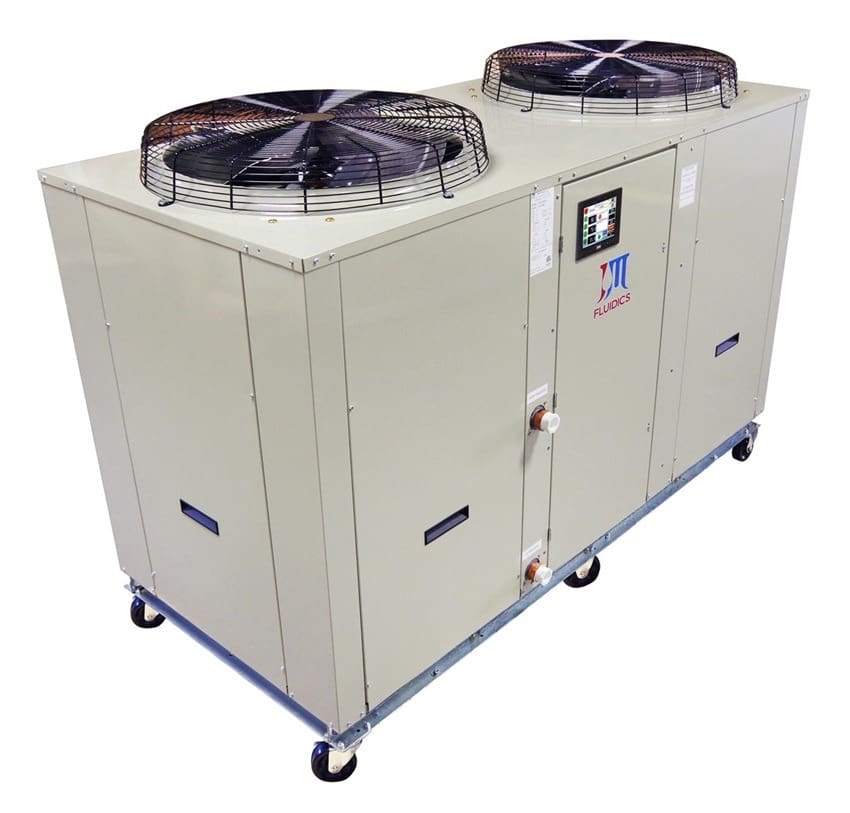

PZAPT11SH5
Chiller Model Shown

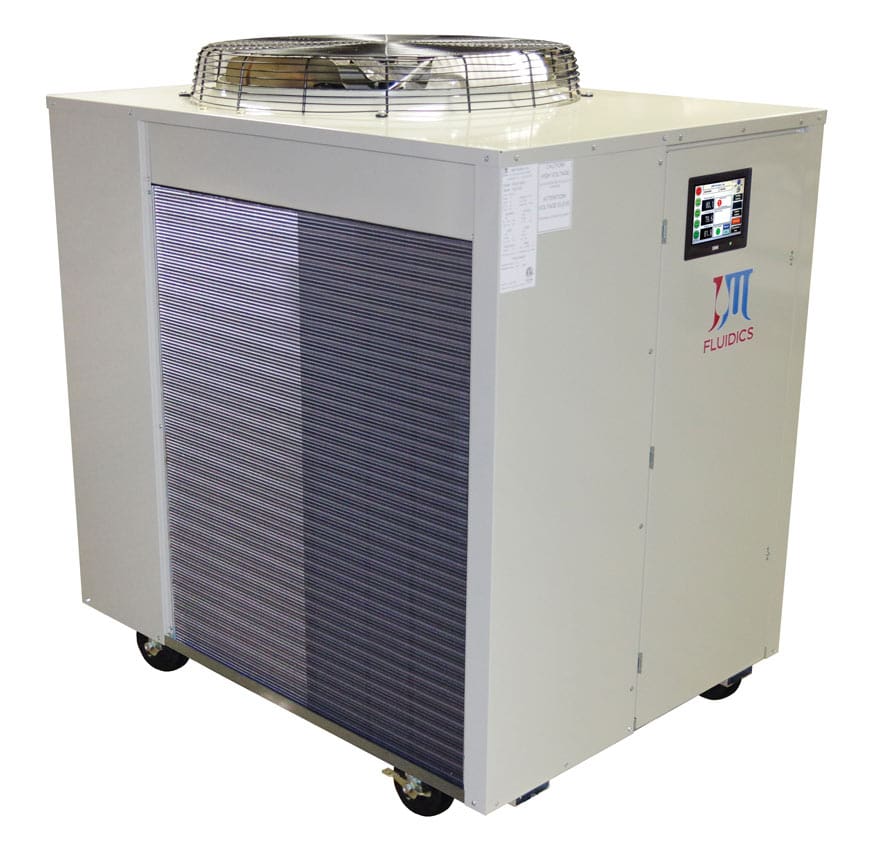

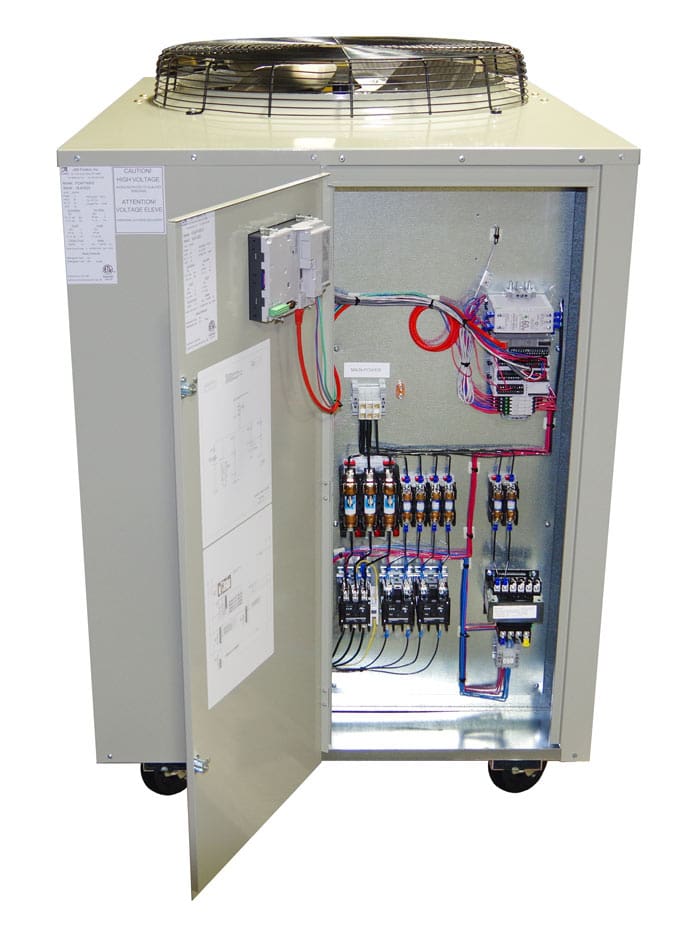

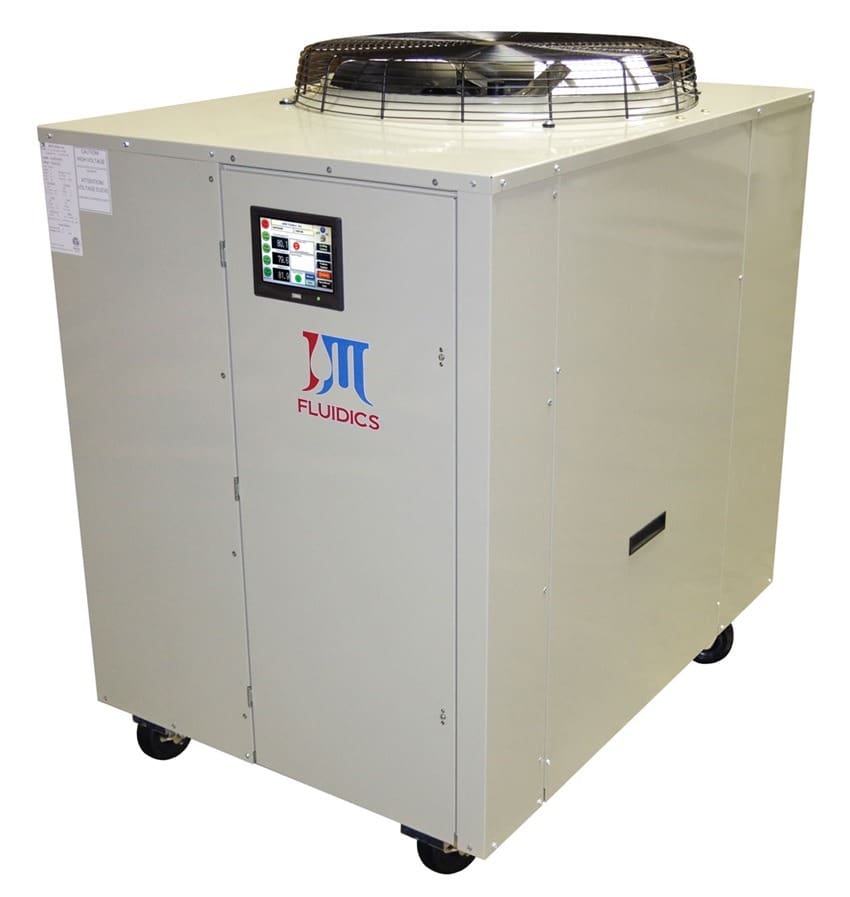

PZAPT5SF5

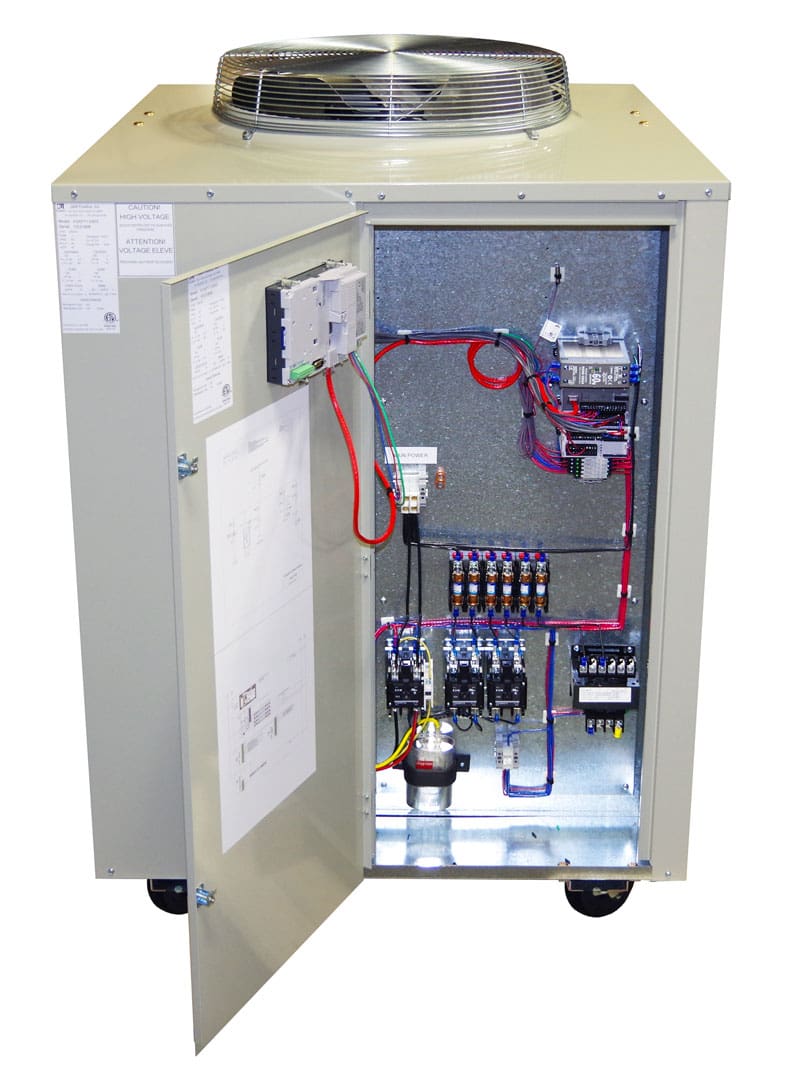

Chiller Model Shown

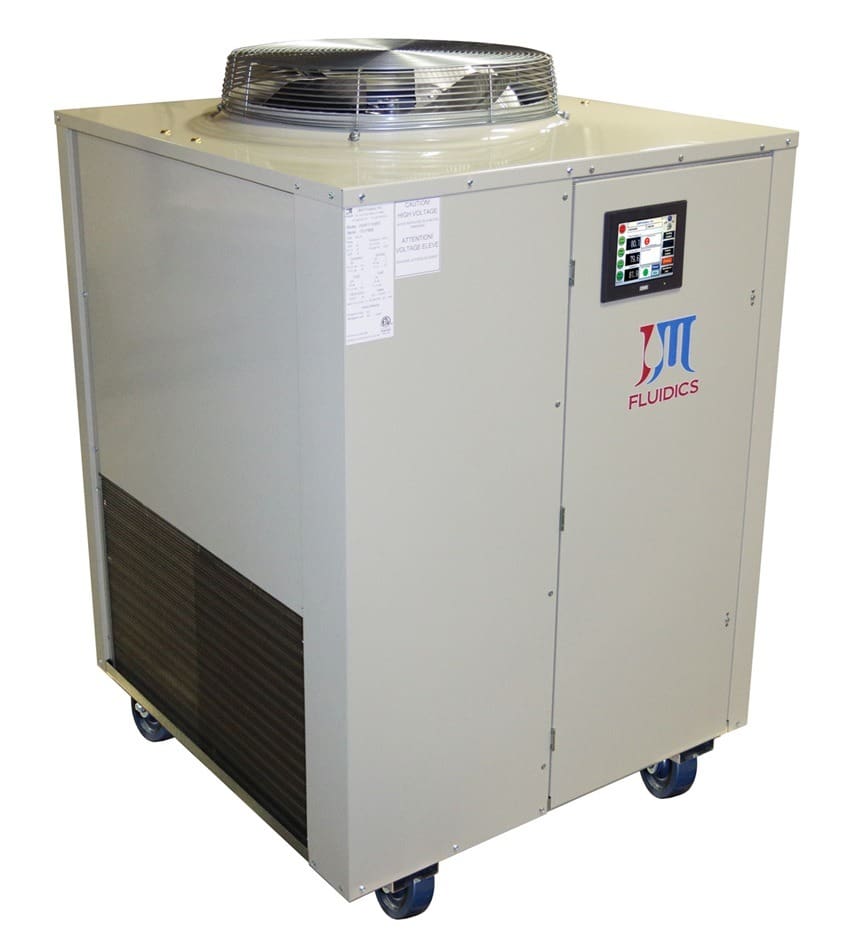

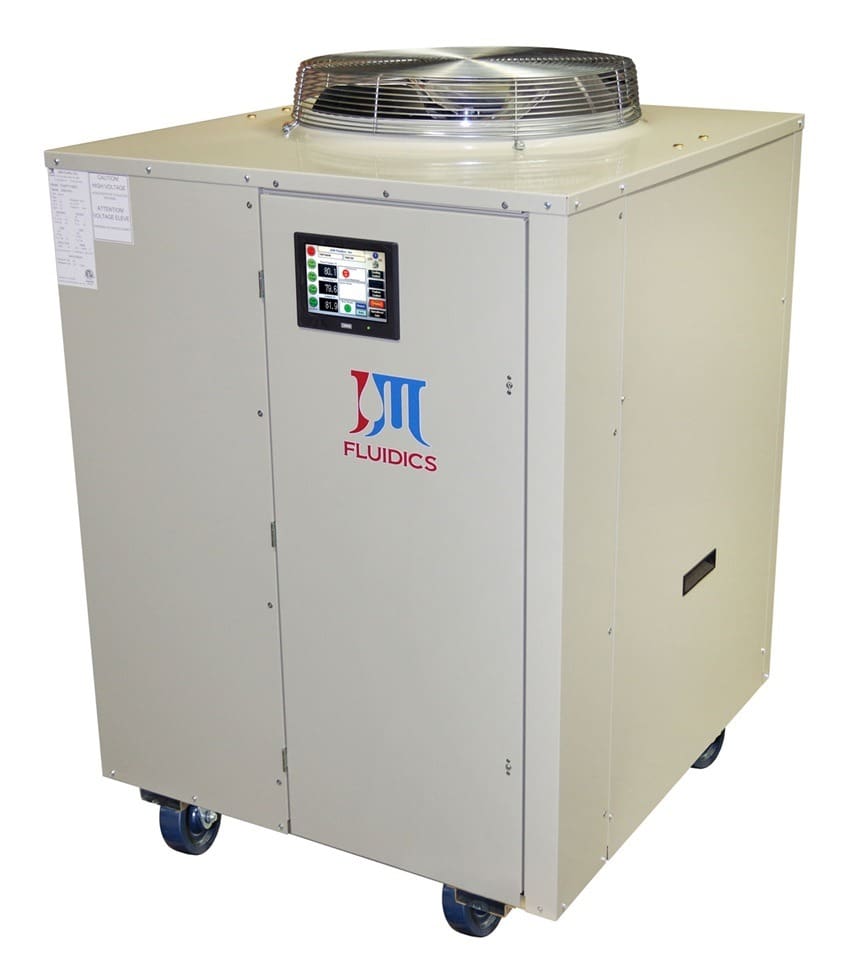

PZAPT1.5SE5
Water-Cooled

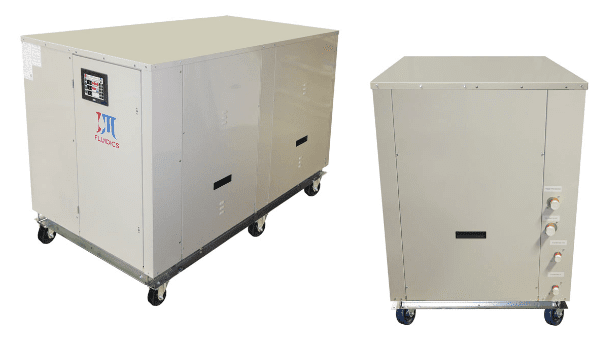

Chiller Model Shown
PZWPT11SF5
Water-Cooled

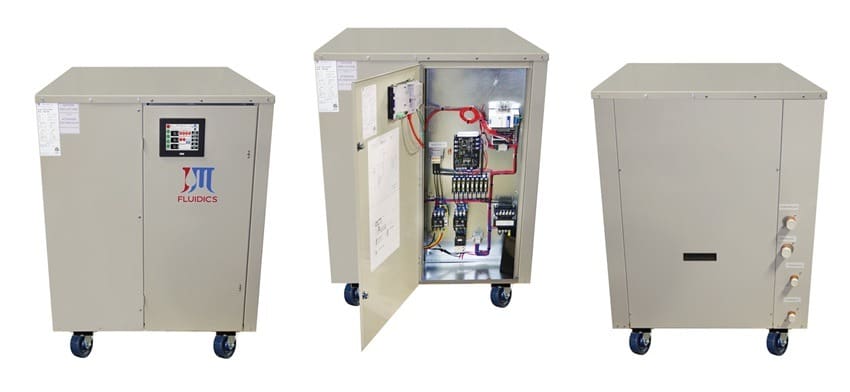

Chiller Model Shown
PZWPT5SF5
