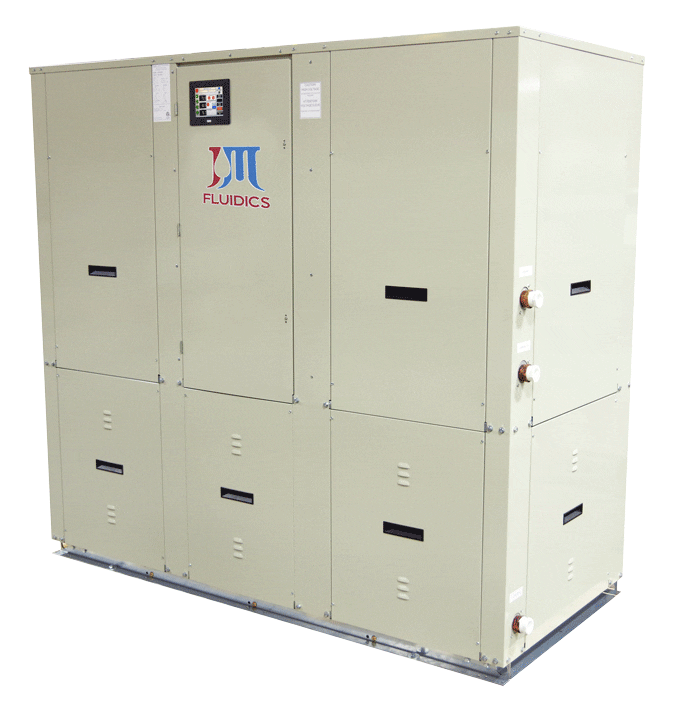

Water-Cooled Scroll Chillers
J&M Fluidics’ Water-Cooled Scroll Process Chiller Product Line is ideal for industrial cooling and refrigeration applications. Available in 1.0 to 30.0 HP. A cooling tower or other water source is required to cool the chiller condenser coil.

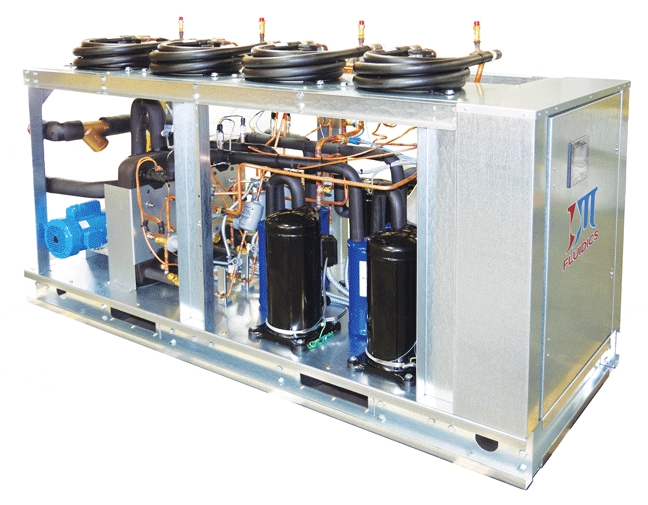

Custom Model
PZW15M-208V Single-Phase Water-Cooled Scroll

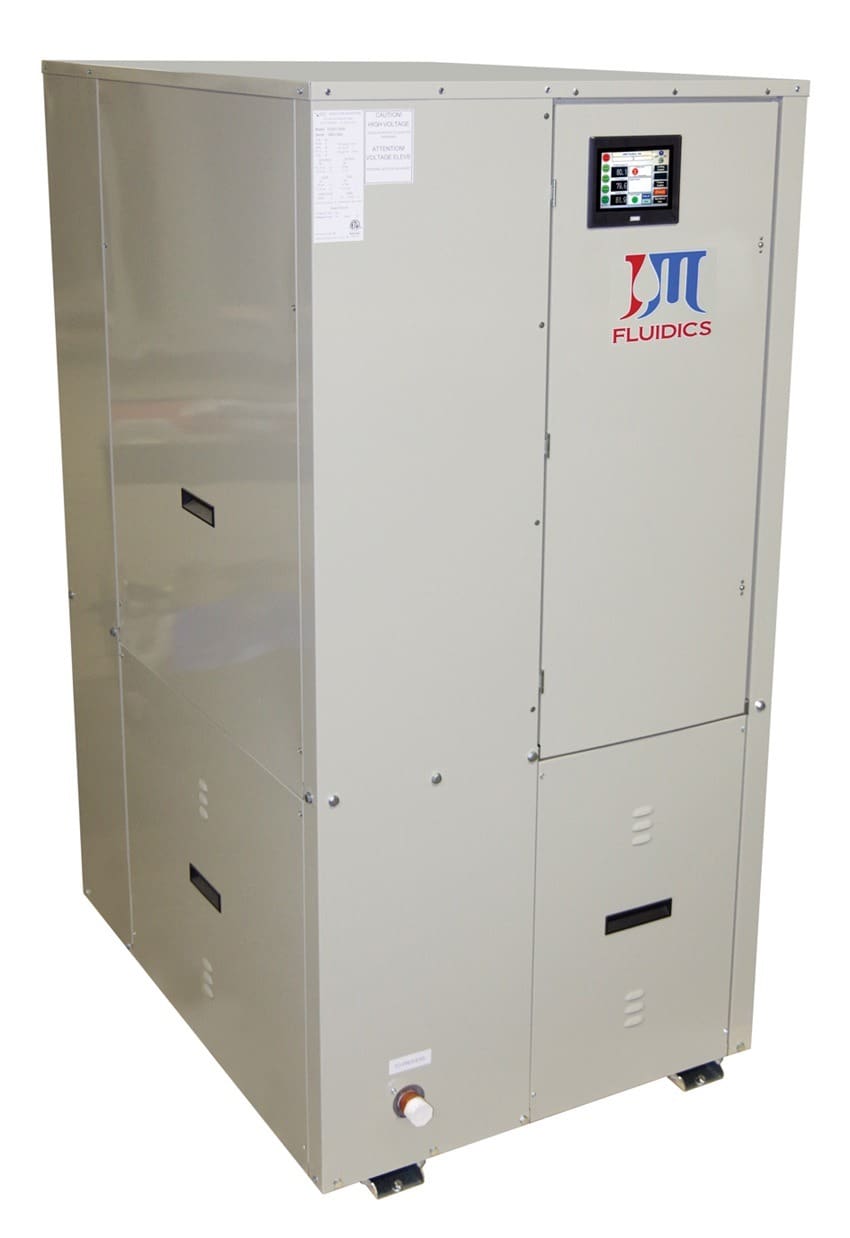

Model
PZWT9S15

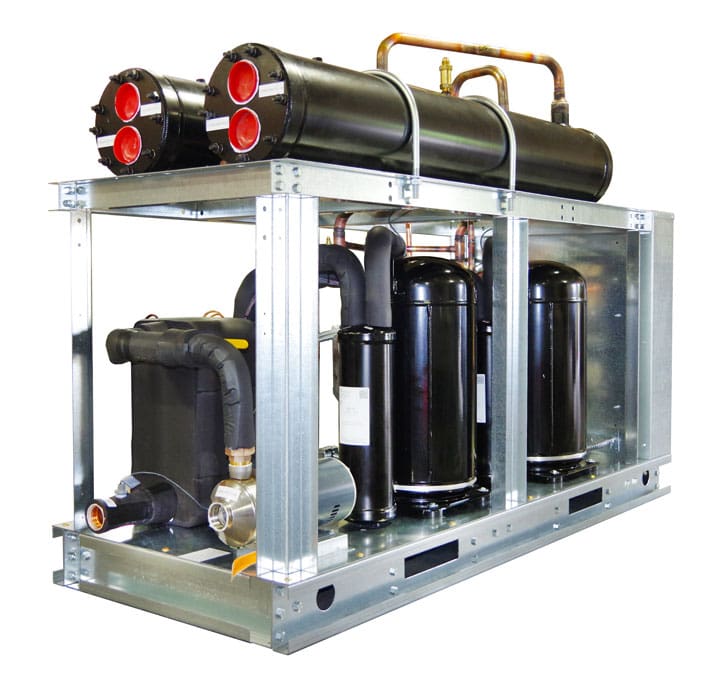

Model
PZW43D
Water-Cooled Chiller Data sheets for each refrigerant
STANDARD ON ALL J&M MODELS
Pentra Microsmart, Programmable Logic Controller (PLC) with HMI Touch Screen Display.
Availability
- Cooling capacities from 1 ton to 52 tons
- Single or Dual Copeland Scroll Compressors
- LCD Touchscreen Controller
Standard Features (All Models)
- ETL listed to UL1995 & CAN/CSA C22.2 No. 236-11, 4th edition, 10/14/2011
- Single Point Power Connection
- Idec Microprocessor Controller With Easy-To-Use Touch Screen Display
- Stainless Steel, Brazed Plate Evaporator
- Scroll Compressor With Crankcase Heater
- Suction Accumulator
- Water Flow Switch
- Hot Gas Bypass Capacity Control
- 24V Control Transformer
- Control Circuit Fusing
- Condenser(S): Coaxial Up To PZW22D
- Condenser(S): Shell and Tube PZW26D Through PZW52D
- Compressor Motor Contactor
- Painted – Powder Coated (Most Models), Galvanized Sheet Metal Cabinet
- 1/2” Insulation on All Water and Refrigerant Lines
- Liquid Line Drier, Sight Glass, Solenoid, TXV
- Complete Refrigerant Charge From Factory
Tank Models Only
- Stainless Steel Storage Tank With 1/2 Inch Insulation
- Fused, Stainless Steel Re-Circulation Pump For Tank
Operation With Ball Valve And Cleanable Strainer - Tank Pressure Relief Valve, Vent And Drain Hose Bibs
Available Options (Most Models)
- Remote Idec Touchscreen Control Panel
- Industrial VPN Router
- 5 Port Ethernet Switch
- Bacnet Gateway
- Process Pump VFD Controller
- 4-Year Extended Compressor Warranty
- Casters (Factory Mounted)
- Condenser Water Regulating Valve
- 115-Volt (Rain Tight) Service Outlet
- Non Fused Disconnect
- Phase Monitor, Line Voltage Monitor Offering Protection Against Phase Loss/Reversal, Unbalance and High/Low Voltage
- Compressor Fusing
- Compressor Sound Cover
- Factory Installed Evaporator Heat Tape Freeze Protection
- Low Flow By-Pass Valve
- Fused, Stainless Steel Process Pump
- Dual System Pump With Manual Changeover (Some Models)
- Dual System Pump With Auto Changeover (Some Models)
- Pump Suction Isolation Valve
- Water Pressure Gauge Set
- Water Flow Meter
- Auto City Water Changeover Panel With Filter
- Stainless Steel, Sch80 PVC, or Polypropylene Piping For Deionized And Reverse Osmosis Water Systems
Tank Models Only
- Storage Tank Sight Glass
- Tank Low Liquid Level Indicator With Dry Contacts
J&M Fluidics water-cooled scroll Chillers
R454C Data Sheet Downloads
Water-Cooled Process Chillers, Packaged,
Single Circuit Scroll, Tankless
| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| PZW1S | 12,100 | 36 | 34 | 36 | 210 | 1 | 1.0 |
| PZW2S | 24,500 | 36 | 34 | 36 | 215 | 1 | 2.0 |
| PZW3S | 36,600 | 36 | 34 | 36 | 340 | 1 | 3.0 |
| PZW3.5S | 42,400 | 36 | 34 | 36 | 360 | 1 | 3.5 |
| PZW4.5S | 53,400 | 46 | 34 | 36 | 400 | 1 | 4.5 |
| PZW5S | 59,900 | 46 | 34 | 36 | 425 | 1 | 5.0 |
| PZW5.5S | 63,600 | 46 | 34 | 36 | 450 | 1 | 5.5 |
| PZW6.5S | 80,000 | 46 | 34 | 36 | 525 | 1 | 6.5 |
| PZW7.5S | 91,300 | 46 | 34 | 36 | 585 | 1 | 7.5 |
| PZW9S | 110,500 | 46 | 34 | 36 | 600 | 1 | 9.0 |
| PZW11S | 136,500 | 46 | 34 | 36 | 725 | 1 | 11.0 |
| PZW12.5S | 155,000 | 46 | 34 | 36 | 825 | 1 | 12.5 |
| PZW7D | 84,800 | 65 | 34 | 36 | 725 | 2 | 3.5 |
| PZW9D | 106,800 | 65 | 34 | 36 | 750 | 2 | 4.5 |
| PZW10D | 119,800 | 65 | 34 | 36 | 775 | 2 | 5.0 |
| PZW11D | 127,200 | 65 | 34 | 36 | 800 | 2 | 5.5 |
| PZW13D | 160,000 | 75 | 34 | 36 | 900 | 2 | 7.5 |
| PZW15D | 182,600 | 75 | 34 | 36 | 965 | 2 | 7.5 |
| PZW18D | 221,000 | 75 | 34 | 36 | 975 | 2 | 9.0 |
| PZW22D | 273,000 | 75 | 34 | 36 | 1000 | 2 | 11.0 |
| PZW25D | 310,000 | 85 | 34 | 59 | 1950 | 2 | 12.5 |
Water-Cooled Process Chillers, Packaged,
Single Circuit Scroll, with Stainless Steel Tank

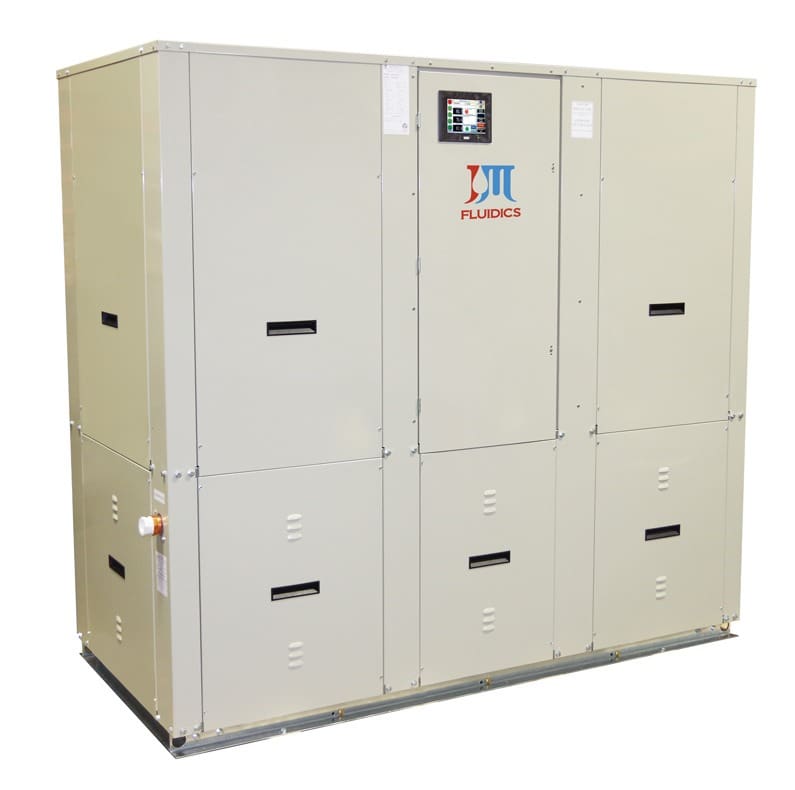

| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| PZWT1S | 11,350 | 36 | 34 | 65 | 450 | 1 | 1.0 |
| PZWT2S | 23,000 | 36 | 34 | 65 | 550 | 1 | 2.0 |
| PZWT3S | 34,400 | 36 | 34 | 65 | 650 | 1 | 3.0 |
| PZWT3.5S | 39,800 | 36 | 34 | 65 | 675 | 1 | 3.5 |
| PZWT4.5S | 50,200 | 46 | 34 | 68.5 | 700 | 1 | 4.5 |
| PZWT5S | 56,200 | 46 | 34 | 68.5 | 725 | 1 | 5.0 |
| PZWT5.5S | 59,700 | 46 | 34 | 68.5 | 775 | 1 | 5.5 |
| PZWT6.5S | 75,200 | 46 | 34 | 68.5 | 850 | 1 | 6.5 |
| PZWT7.5S | 85,800 | 75 | 34 | 70 | 1000 | 1 | 7.5 |
| PZWT9S | 103,500 | 75 | 34 | 70 | 1050 | 1 | 9.0 |
| PZWT11S | 128,000 | 75 | 34 | 70 | 1200 | 1 | 11.0 |
| PZWT12.5S | 146,000 | 75 | 34 | 70 | 1300 | 1 | 12.5 |
| PZWT7D | 79,600 | 75 | 34 | 70 | 1000 | 2 | 3.5 |
| PZWT9D | 100,400 | 75 | 34 | 70 | 1100 | 2 | 4.5 |
| PZWT10D | 112,400 | 75 | 34 | 70 | 1200 | 2 | 5.0 |
| PZWT11D | 119,400 | 75 | 34 | 70 | 1250 | 2 | 5.5 |
| PZWT13D | 150,400 | 85 | 34 | 70 | 1300 | 2 | 6.5 |
| PZWT15D | 171,600 | 85 | 34 | 70 | 1400 | 2 | 7.5 |
| PZWT18D | 207,000 | 85 | 34 | 70 | 1450 | 2 | 9.0 |
| PZWT22D | 256,000 | 85 | 34 | 70 | 1600 | 2 | 11.0 |
J&M Fluidics Water-cooled scroll Chillers
R407C Data Sheet Downloads
Water-Cooled Process Chillers, Packaged,
Single Circuit Scroll, Tankless
| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| PZW1S | 13,500 | 36 | 34 | 36 | 210 | 1 | 1.3 |
| PZW1.5S | 22,500 | 36 | 34 | 36 | 215 | 1 | 2.0 |
| PZW2S | 25,400 | 36 | 34 | 36 | 215 | 1 | 2.5 |
| PZW2.5S | 37,900 | 36 | 34 | 36 | 245 | 1 | 3.5 |
| PZW3S | 42,400 | 36 | 34 | 36 | 340 | 1 | 4 |
| PZW4S | 54,500 | 46 | 34 | 36 | 400 | 1 | 5.0 |
| PZW4.5S | 56,500 | 46 | 34 | 36 | 425 | 1 | 5.0 |
| PZW5S | 66,400 | 46 | 34 | 36 | 450 | 1 | 6.0 |
| PZW7S | 86,500 | 46 | 34 | 36 | 525 | 1 | 8.0 |
| PZW8S | 98,000 | 46 | 34 | 36 | 585 | 1 | 9.0 |
| PZW9S | 115,000 | 46 | 34 | 36 | 600 | 1 | 10.0 |
| PZW11S | 139,500 | 46 | 34 | 36 | 725 | 1 | 13.0 |
| PZW7D | 84,800 | 65 | 34 | 37 | 725 | 2 | 4.0 |
| PZWT9D | 109,000 | 65 | 34 | 37 | 750 | 2 | 5.0 |
| PZW9.5D | 113,000 | 65 | 34 | 37 | 775 | 2 | 5.0 |
| PZW10D | 132,800 | 65 | 34 | 37 | 800 | 2 | 6.0 |
| PZW13D | 173,000 | 75 | 34 | 37 | 900 | 2 | 8.0 |
| PZW15D | 196,000 | 75 | 34 | 37 | 965 | 2 | 9.0 |
| PZW18D | 230,000 | 75 | 34 | 37 | 975 | 2 | 10.0 |
| PZW22D | 279,000 | 75 | 34 | 37 | 1000 | 2 | 13.0 |
| PZW26D | 327,000 | 87 | 34 | 54 | 1950 | 2 | 15.0 |
| PZW35D | 442,000 | 87 | 34 | 54 | 2200 | 2 | 20.0 |
| PZW43D | 534,000 | 87 | 34 | 54 | 2350 | 2 | 25.0 |
| PZW52D | 674,000 | 87 | 34 | 54 | 2500 | 2 | 30.0 |
Water-Cooled Process Chillers, Packaged,
Single Circuit Scroll, with Stainless Steel Tank
| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| PZWT1S | 11,350 | 36 | 34 | 65 | 450 | 1 | 1.0 |
| PZWT1.5S | 23,000 | 36 | 34 | 65 | 550 | 1 | 2.0 |
| PZWT2S | 34,400 | 36 | 34 | 65 | 650 | 1 | 3.0 |
| PZWT2.5S | 39,800 | 36 | 34 | 65 | 675 | 1 | 3.5 |
| PZWT3S | 50,200 | 46 | 34 | 68.5 | 700 | 1 | 4.5 |
| PZWT4S | 56,200 | 46 | 34 | 68.5 | 725 | 1 | 5.0 |
| PZWT4.5S | 59,700 | 46 | 34 | 68.5 | 775 | 1 | 5.5 |
| PZWT5S | 75,200 | 46 | 34 | 68.5 | 850 | 1 | 6.5 |
| PZWT7S | 85,800 | 75 | 34 | 70 | 1000 | 1 | 7.5 |
| PZWT8S | 103,500 | 75 | 34 | 70 | 1050 | 1 | 9.0 |
| PZWT9S | 128,000 | 75 | 34 | 70 | 1200 | 1 | 11.0 |
| PZWT11S | 146,000 | 75 | 34 | 70 | 1300 | 1 | 12.5 |
| PZWT7D | 79,600 | 75 | 34 | 70 | 1000 | 2 | 3.5 |
| PZWT9D | 100,400 | 75 | 34 | 70 | 1100 | 2 | 4.5 |
| PZWT10D | 112,400 | 75 | 34 | 70 | 1200 | 2 | 5.0 |
| PZWT11D | 119,400 | 75 | 34 | 70 | 1250 | 2 | 5.5 |
| PZWT13D | 150,400 | 85 | 34 | 70 | 1300 | 2 | 6.5 |
| PZWT15D | 171,600 | 85 | 34 | 70 | 1400 | 2 | 7.5 |
| PZWT18D | 207,000 | 85 | 34 | 70 | 1450 | 2 | 9.0 |
| PZWT22D | 256,000 | 85 | 34 | 70 | 1600 | 2 | 11.0 |
Model

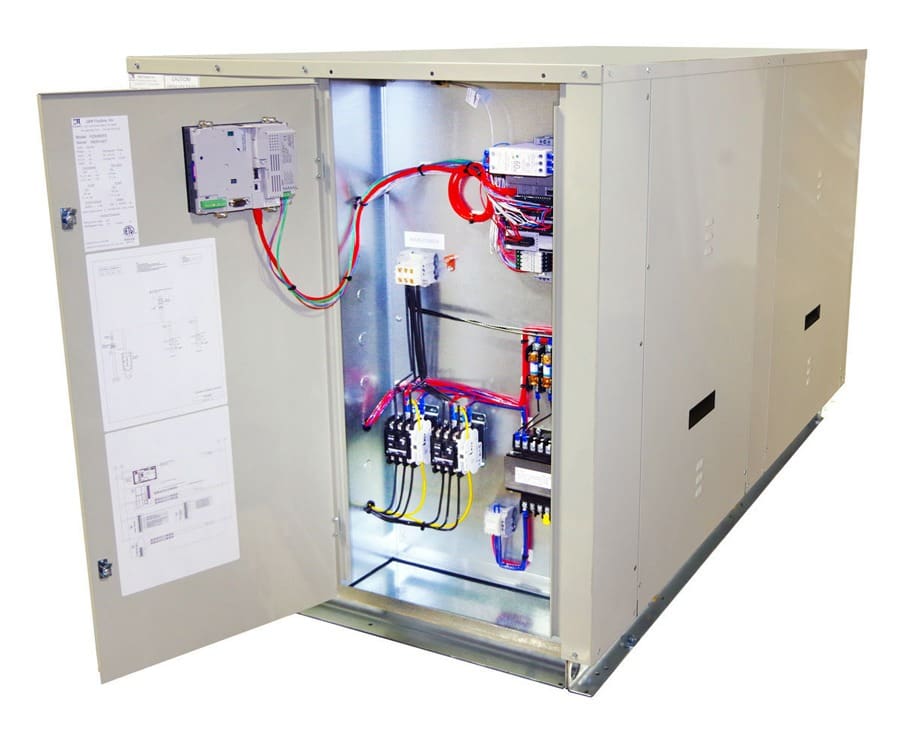

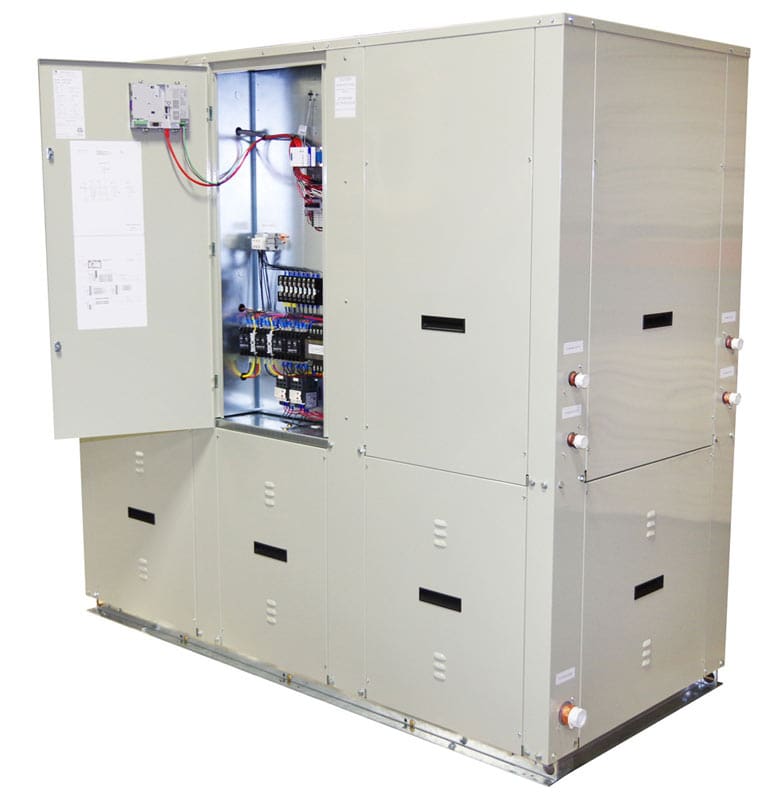

PZW9DF6 with Open Control Panel

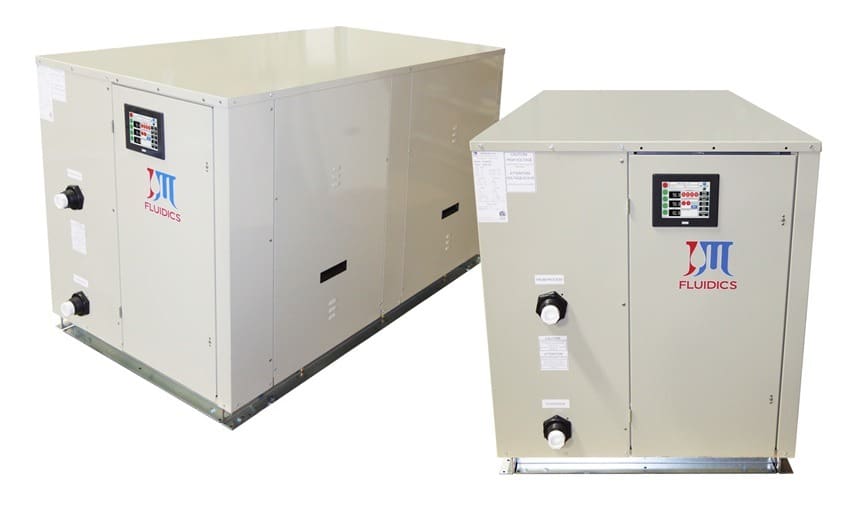

Both Views Model
PZW9DF6 Dual Circuit Scroll, Packaged Water-Cooled Chiller
Model
PZW9DF6 with Open Control Panel
STANDARD ON ALL J&M MODELS
Pentra Microsmart, Programmable Logic Controller (PLC) with HMI Touch Screen Display
Model
PZW26DH5VFD with Compressor VFD and Pump VFD

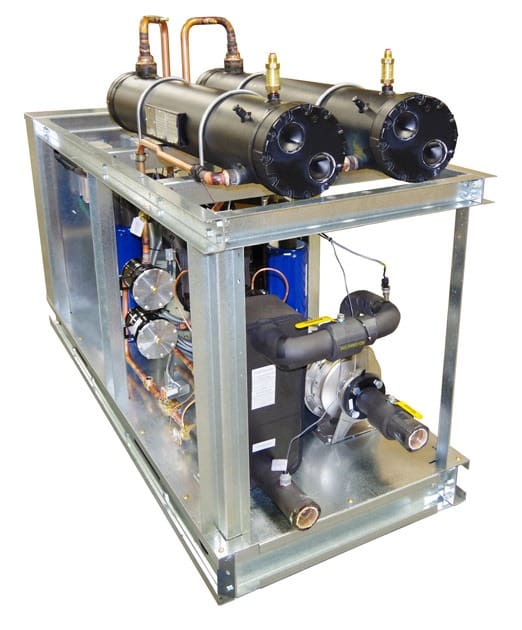

View 1 Back View
Showing insulated process fluid inlet and process fluid outlet tubing

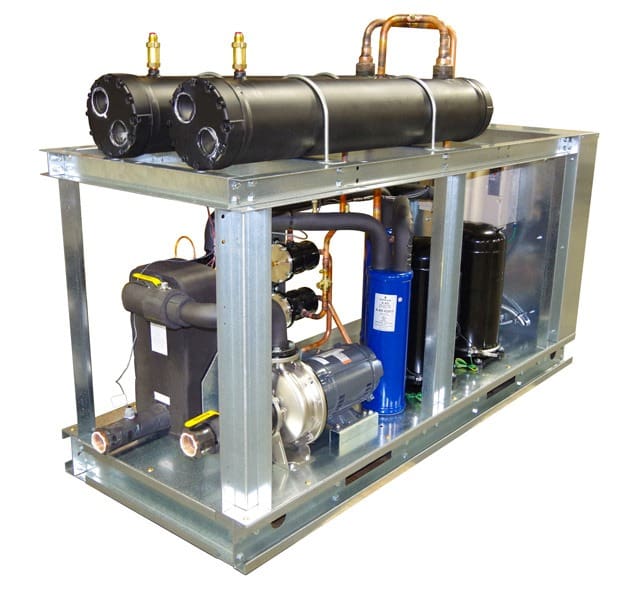

View 2 Back View
Showing the water cooled condenser on top with condenser fluid inlet and condenser fluid outlet tubing

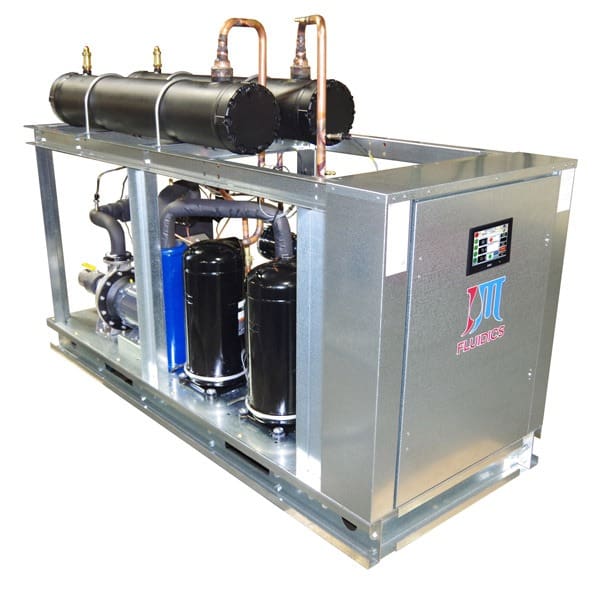

View 3 Front View –
Showing IDEC Touchscreen Display at the Right

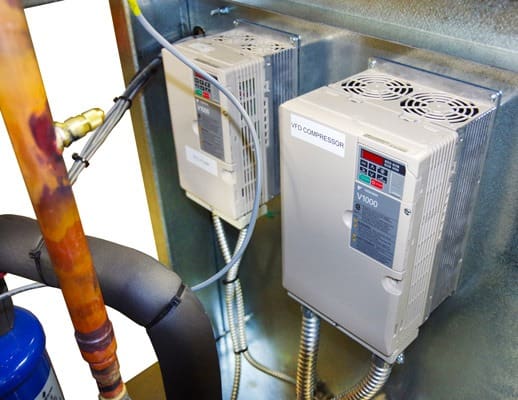

Showing – Pump VFD and Compressor VFD
