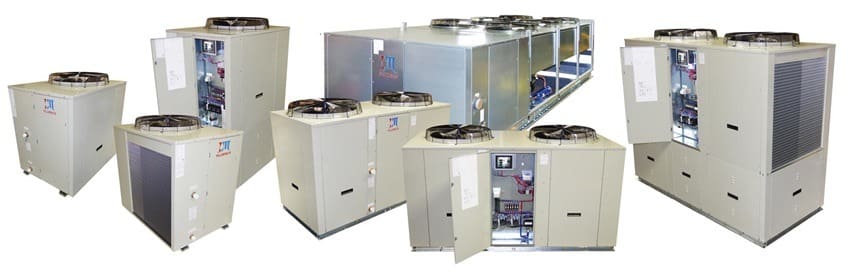

Air-Cooled Scroll Chillers
Our Air-Cooled Scroll Chiller line is your ultimate solution for energy efficient, residential, industrial, and refrigeration process cooling applications that demand extremely stable temperatures. Our chillers range from 1.0 to 100.0 HP and can be configured in split condenser models, making them highly efficient and adaptable to any operational requirement.
Air-Cooled Scroll Chiller Data sheets for each refrigerant
Key Features
Each of our air cooled chillers comes standard with advanced technology to ensure optimal performance:
Standard on All J&M Models
Pentra Microsmart, Programmable Logic Controller (PLC) with HMI Touch Screen Display.
Note: We can match your chiller with any colors on the RAL Color System Chart.
J&M Split-System Process Chiller & Condenser
Custom- Split-System, Air-Cooled Chiller (Indoor chiller)

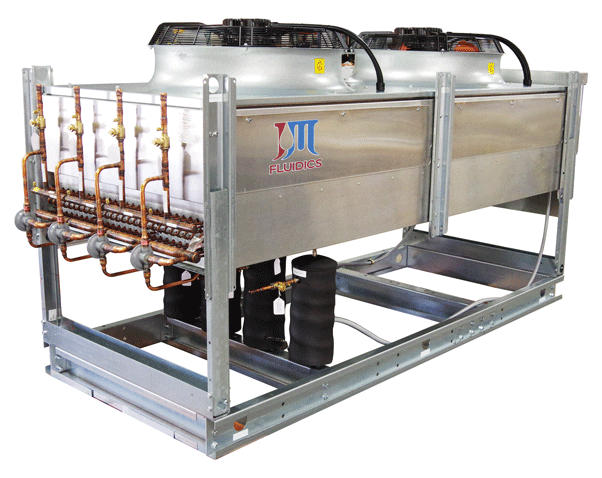

Custom 4 Circuit Condenser with ECM Fan Motor (Model: OC28M) (Outdoor Condenser)
Availability
- Cooling Capacities From 1 Ton to 91 Tons
- Single or Dual Copeland Scroll Compressors
- LCD Touchscreen Controller
- Tankless, Stainless Steel Tank or Polyethylene Tank
Split System Models Only
- Outdoor Condenser Section
- Discharge and Liquid Line ball valves on indoor and outdoor equipment
Standard Features (All Air Cooled Scroll chiller Models)
- ETL listed to UL1995 & CAN/CSA C22.2 No. 236-11, 4th edition, 10/14/2011
- Single Point Power Connection
- Programmable Logic Controller (PLC) With Easy-to-Use HMI Touch Screen Display
- Stainless Steel, Brazed Plate Evaporator
- Scroll Compressor With Crankcase Heater
- Suction Accumulator
- Water Flow Switch
- Hot Gas Bypass Capacity Control
- 24V Control Transformer
- Direct Drive Condenser Fan Motor
- Fan cycle control (+40°F)
- Rust Resistant, High CFM, Aluminum Condenser Fan Blade
- Condenser(s): Copper Tube/Aluminum Fin
- Compressor Motor Contactor
- Condenser Motor and Control Circuit Fusing
- Painted (Powder Coated), Galvanized Metal Cabinet
- ½-Inch Insulation On All Water And Refrigerant Lines
- Liquid Line Drier, Sight Glass, Solenoid
- Electronic Expansion Valve
- Maunal High Pressure Cutout
- Complete Refrigerant Charge From Factory
Tank Models Only
- Stainless Steel Storage Tank With 1/2 Inch Insulation
- Fused, Stainless Steel Recirculation Pump For Tank Operation With Ball Valve and Cleanable Strainer
- Tank Pressure Relief Valve, Vent and Drain Hose Bibs
- Storage Tank Sight Glass
- Tank Low Liquid Level Indicator
Available Options (Most Models)
- VFD Compressor Control (Hot Gas Bypass Removed)
- Copeland Digital Scroll Compressor (Hot Gas Bypass Removed)
- Remote Idec Touchscreen Control Panel
- 5-Port Ethernet Switch
- BacNet Gateway
- Process Pump VFD Controller
- 4-Year Extended Compressor Warranty
- Casters (Factory-Mounted)
- 115 Volt (Rain Tight) Service Outlet
- Non Fused Disconnect
- Phase Monitor, Line Voltage Monitor Offering Protection Against Phase Loss/Reversal, Unbalance, And High/Low Voltage
- Compressor Fusing
- Compressor Sound Cover
- Flooded Cond. W/Receiver/Head Pressure Control (0°F)
- Heated, Flooded Cond. W/Receiver/Head Pressure
- Dual Process Pump With Auto Changeover
- Pump Suction Isolation Valve
- Water Pressure Gauge Set
- Copper Finned Condenser Coil (Coastal Protection)
- Coastal Powder Coat Paint Protection
- E-Coat Condenser Coil (Coastal Protection)
- Water Flow Meter
- Auto City Water Make Up Solenoid & Auto Level Switch
- Auto City Water Changeover Panel With Filter
- Stainless Steel, SCH80 PVC or Polypropylene Piping for Deionize and Reverse Osmosis Water Systems
R407C
Air-Cooled Scroll Chillers, Packaged,
Single, Dual, and Quad Circuit Scroll, Tankless
| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| PZA1S | 14,400 | 36 | 34 | 44 | 260 | 1 | 1.3 |
| PZA1.5S | 21,600 | 36 | 34 | 44 | 265 | 1 | 2 |
| PZA2S | 24,000 | 36 | 34 | 44 | 265 | 1 | 2.5 |
| PZA2.5S | 34,800 | 36 | 34 | 44 | 295 | 1 | 3.5 |
| PZA3S | 38,400 | 36 | 34 | 44 | 490 | 1 | 4 |
| PZA4S | 50,400 | 46 | 34 | 48 | 490 | 1 | 5 |
| PZA4.5S | 56,400 | 46 | 34 | 48 | 500 | 1 | 5 |
| PZA5S | 63,600 | 46 | 34 | 48 | 500 | 1 | 6 |
| PZA7S | 81,600 | 75 | 34 | 50 | 650 | 1 | 8 |
| PZA8S | 93,600 | 75 | 34 | 50 | 650 | 1 | 9 |
| PZA9S | 106,800 | 75 | 34 | 50 | 690 | 1 | 10 |
| PZA11S | 123,600 | 75 | 34 | 50 | 750 | 1 | 13 |
| PZA7D | 81,100 | 75 | 34 | 48 | 875 | 2 | 4.0 |
| PZA9D | 106,400 | 75 | 34 | 48 | 900 | 2 | 5.0 |
| PZA9.5D | 111,800 | 75 | 34 | 48 | 950 | 2 | 5.0 |
| PZA10D | 118,000 | 75 | 34 | 48 | 950 | 2 | 6.0 |
| PZA13D | 160,000 | 85 | 40 | 48 | 985 | 2 | 8.0 |
| PZA15D | 183,500 | 85 | 40 | 48 | 1000 | 2 | 9.0 |
| PZA18D | 209,200 | 85 | 40 | 48 | 1100 | 2 | 10.0 |
| PZA22D | 264,200 | 66 | 75 | 51 | 1150 | 2 | 12.0 |
| PZA26D | 302,000 | 180 | 46 | 54 | 2600 | 2 | 15.0 |
| PZA35D | 406,000 | 180 | 88 | 54 | 2900 | 2 | 20.0 |
| PZA43D | 500,000 | 180 | 88 | 54 | 3200 | 2 | 25.0 |
| PZA52D | 612,000 | 180 | 88 | 54 | 4000 | 2 | 30.0 |
| PZA15M | 181,200 | 176.5 | 45.5 | 55 | 3300 | 4 | 4.0 |
| PZA18M | 201,600 | 176.5 | 45.5 | 55 | 3400 | 4 | 5.0 |
| PZA22M | 270,000 | 176.5 | 45.5 | 55 | 3490 | 4 | 6.0 |
| PZA28M | 338,400 | 176.5 | 45.5 | 55 | 3550 | 4 | 6.0 |
| PZA38M | 459,600 | 176.5 | 88 | 55 | 4800 | 4 | 10.0 |
| PZA44M | 510,000 | 176.5 | 88 | 55 | 5100 | 4 | 13.0 |
| PZA56M | 678,000 | 176.5 | 88 | 55 | 5100 | 4 | 15.0 |
| PZA75M | 900,000 | 230 | 88 | 57 | 6700 | 4 | 20.0 |
| PZA91M | 1,092,000 | 230 | 88 | 57 | 7100 | 4 | 25.0 |
Packaged Air-Cooled Scroll Chillers,
Single and Dual Circuit Scroll, with Stainless Steel Tank
| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| PZAT1S | 14,000 | 36 | 34 | 68 | 550 | 1 | 1.3 |
| PZAT1.5S | 18,000 | 36 | 34 | 68 | 600 | 1 | 2.0 |
| PZAT2S | 22,000 | 36 | 34 | 68 | 650 | 1 | 2.5 |
| PZAT2.5S | 28,800 | 36 | 34 | 68 | 700 | 1 | 3.5 |
| PZAT3S | 36,000 | 46 | 34 | 68 | 800 | 1 | 4.0 |
| PZAT4S | 49,200 | 46 | 34 | 72 | 850 | 1 | 5.0 |
| PZAT4.5S | 51,600 | 46 | 34 | 72 | 875 | 1 | 5.0 |
| PZAT5S | 55,200 | 46 | 34 | 72 | 900 | 1 | 6.0 |
| PZAT7S | 75,600 | 75 | 34 | 72 | 1100 | 1 | 8.0 |
| PZAT8S | 84,000 | 75 | 34 | 72 | 1150 | 1 | 9.0 |
| PZAT9S | 98,400 | 75 | 34 | 72 | 1250 | 1 | 10.0 |
| PZAT11S | 122,400 | 75 | 34 | 72 | 1300 | 1 | 12.0 |
| PZAT7D | 73,200 | 75 | 34 | 77 | 1100 | 2 | 4.0 |
| PZAT9D | 96,000 | 75 | 34 | 77 | 1200 | 2 | 5.0 |
| PZAT9.5D | 102,000 | 75 | 34 | 77 | 1250 | 2 | 5.0 |
| PZAT10D | 108,000 | 75 | 34 | 77 | 1250 | 2 | 6.0 |
| PZAT13D | 147,000 | 85 | 40 | 77 | 1300 | 2 | 8.0 |
| PZAT15D | 167,000 | 85 | 40 | 77 | 1400 | 2 | 9.0 |
| PZAT18D | 190,800 | 85 | 40 | 77 | 1450 | 2 | 10.0 |
| PZAT22D | 246,000 | 75 | 66 | 76 | 2200 | 2 | 13.0 |
Air-Cooled Scroll Chillers, Packaged,
Single, Dual, and Quad Circuit Scroll, Tankless
| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| IEZA1S | 14,200 | 44 | 28 | 36 | 225 | 1 | 1.3 |
| IEZA1.5S | 21,500 | 44 | 28 | 36 | 225 | 1 | 2.0 |
| IEZA2S | 24,100 | 44 | 28 | 36 | 370 | 1 | 2.5 |
| IEZA2.5S | 34,800 | 44 | 28 | 36 | 500 | 1 | 3.5 |
| IEZA3S | 39,200 | 44 | 28 | 36 | 500 | 1 | 4.0 |
| IEZA4S | 50,000 | 44 | 28 | 36 | 550 | 1 | 4.0 |
| IEZA4.5S | 54,000 | 44 | 28 | 36 | 575 | 1 | 5.0 |
| IEZA5S | 60,000 | 44 | 28 | 36 | 600 | 1 | 6.0 |
| IEZA7S | 81,000 | 44 | 28 | 36 | 700 | 1 | 8.0 |
| IEZA8S | 91,000 | 44 | 28 | 36 | 725 | 1 | 9.0 |
| IEZA9S | 106,000 | 44 | 28 | 36 | 750 | 1 | 10.0 |
| IEZA11S | 132,000 | 44 | 28 | 36 | 850 | 1 | 12.0 |
| IEZA7D | 81,100 | 65 | 30 | 37 | 900 | 2 | 4.0 |
| IEZA9D | 106,400 | 65 | 30 | 37 | 1000 | 2 | 5.0 |
| IEZA9.5D | 111,800 | 65 | 30 | 37 | 1100 | 2 | 5.0 |
| IEZA10D | 118,000 | 65 | 30 | 37 | 1200 | 2 | 6.0 |
| IEZA13D | 160,000 | 65 | 30 | 37 | 1400 | 2 | 8.0 |
| IEZA15D | 183,500 | 65 | 30 | 37 | 1450 | 2 | 9.0 |
| IEZA18D | 209,200 | 65 | 30 | 37 | 1500 | 2 | 10.0 |
| IEZA22D | 264,200 | 65 | 30 | 37 | 1750 | 2 | 12.0 |
| IEZA26D | 302,000 | 85 | 34 | 42 | 1500 | 2 | 15.0 |
| IEZA35D | 406,000 | 85 | 34 | 42 | 1600 | 2 | 20.0 |
| IEZA43D | 500,000 | 85 | 34 | 42 | 1700 | 2 | 25.0 |
| IEZA52D | 612,000 | 85 | 34 | 42 | 1700 | 2 | 30.0 |
M Series – (4) Compressor Packaged Chillers.
Air-cooled process chiller capacities based on
ARI standard 45°F LWT and 95°F AMB.
Split-System Air-Cooled Scroll Chillers,
Single and Dual Circuit Scroll, with Stainless Steel Tank
| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| IEZAT1S | 14,000 | 36 | 34 | 65 | 550 | 1 | 1.3 |
| IEZAT1.5S | 18,000 | 36 | 34 | 65 | 600 | 1 | 2.0 |
| IEZAT2S | 22,000 | 36 | 34 | 65 | 650 | 1 | 2.5 |
| IEZAT2.5S | 28,800 | 36 | 34 | 65 | 700 | 1 | 3.5 |
| IEZAT3S | 36,000 | 46 | 34 | 65 | 800 | 1 | 4.0 |
| IEZAT4S | 49,200 | 46 | 34 | 69 | 850 | 1 | 5.0 |
| IEZAT4.5S | 51,600 | 46 | 34 | 69 | 875 | 1 | 5.0 |
| IEZAT5S | 55,200 | 46 | 34 | 69 | 900 | 1 | 6.0 |
| IEZAT7S | 75,600 | 75 | 34 | 69 | 1100 | 1 | 8.0 |
| IEZAT8S | 84,000 | 75 | 34 | 70 | 1150 | 1 | 9.0 |
| IEZAT9S | 98,400 | 75 | 34 | 70 | 1250 | 1 | 10.0 |
| IEZAT11S | 122,400 | 75 | 34 | 70 | 1300 | 1 | 12.0 |
| IEZAT7D | 73,200 | 75 | 34 | 70 | 1350 | 2 | 4.0 |
| IEZAT9D | 96,000 | 75 | 34 | 70 | 1400 | 2 | 5.0 |
| IEZAT9.5D | 102,000 | 75 | 34 | 70 | 1450 | 2 | 5.0 |
| IEZAT10D | 108,000 | 75 | 34 | 70 | 1500 | 2 | 6.0 |
| IEZAT13D | 147,000 | 75 | 34 | 70 | 1700 | 2 | 8.0 |
| IEZAT15D | 167,000 | 75 | 34 | 70 | 1800 | 2 | 9.0 |
| IEZAT18D | 190,800 | 85 | 34 | 70 | 1900 | 2 | 10.0 |
| IEZAT22D | 238,800 | 85 | 34 | 70 | 2100 | 2 | 12.0 |
| IEZAT26D | 302,000 | 85 | 34 | 42 | 1500 | 2 | 15.0 |
| IEZAT35D | 406,000 | 85 | 34 | 42 | 1600 | 2 | 20.0 |
| IEZAT43D | 500,000 | 85 | 34 | 42 | 1700 | 2 | 25.0 |
Air-cooled process chiller capacities based on
ARI standard 45°F LWT and 95°F AMB.
E-Coating

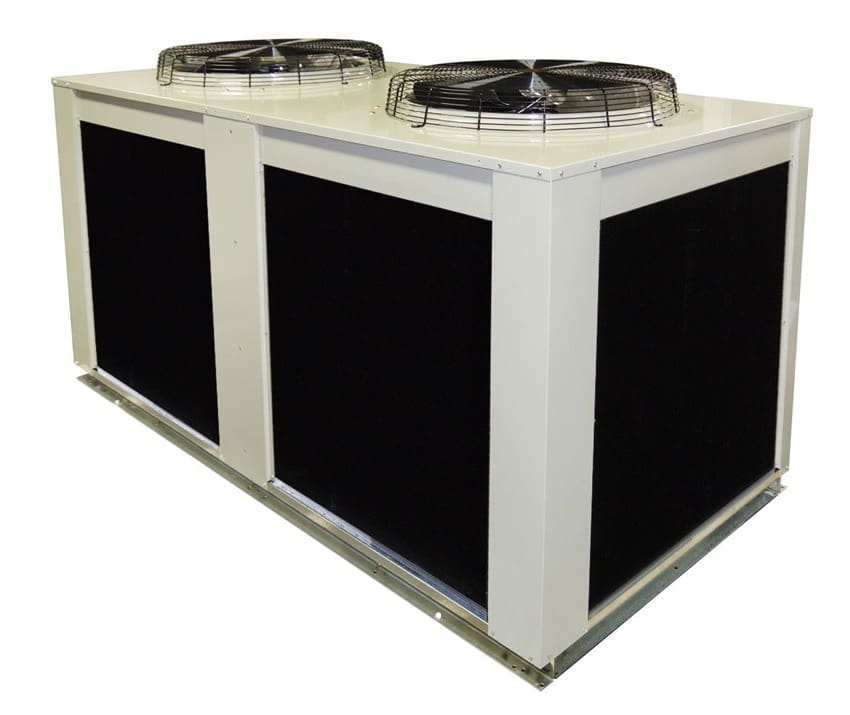

Ask About “E-Coated” Condenser Coils for Exceptional Protection Against Corrosive Environments.
Model
PZA18DH5
Model
PZA22DH5
Model
PZAT18DH5
Custom High-Efficiency Chillers
Custom Model
PZA56MH5D with Custom ECM Fan Motors and Galvanized Metal Cabinet with Optional Custom Painted Color (Powder Coated)
Inside

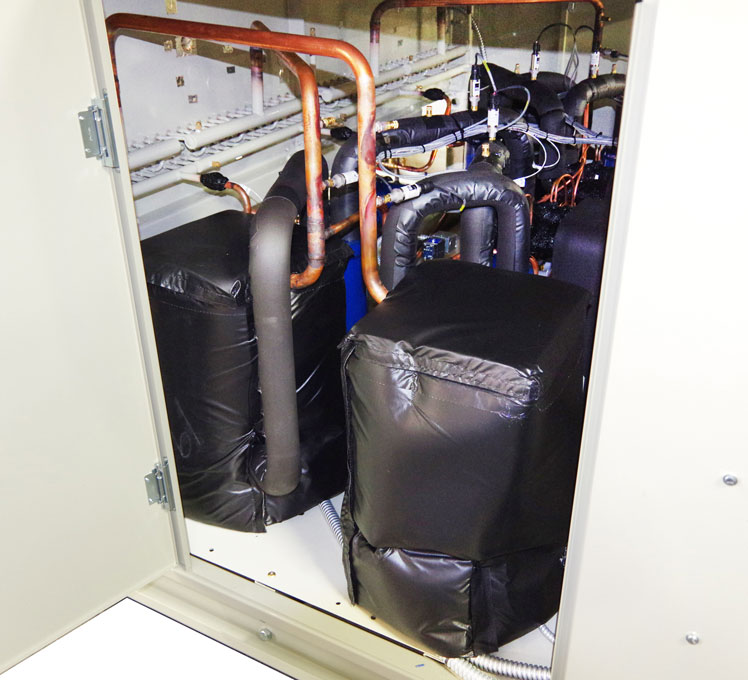

Scroll Compressors Shown with Optional Sound Covers for Sound Reduction
View Inside-Bottom of Chiller
Showing Easy Access to the Replaceable Core Filter-Driers

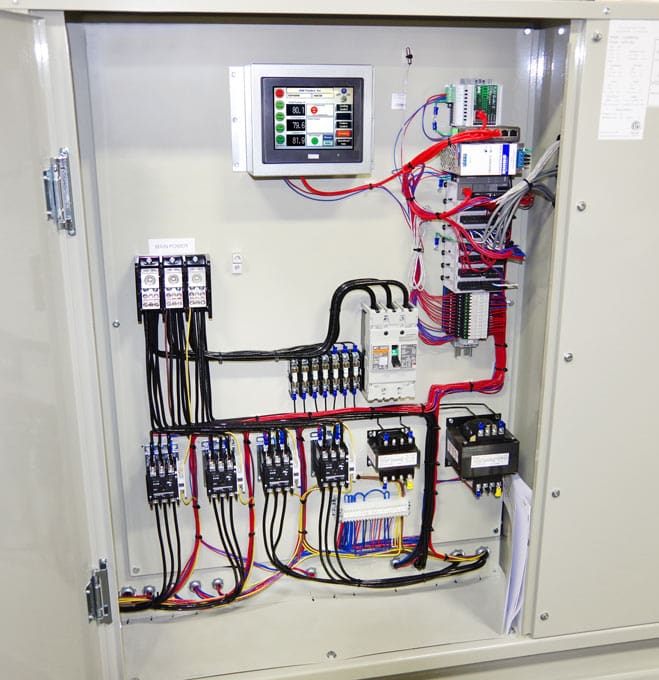

Inside Electrical Cabinet
Showing J&M Touch-Screen User Interface and Programmable Logic Controller (inside top right)

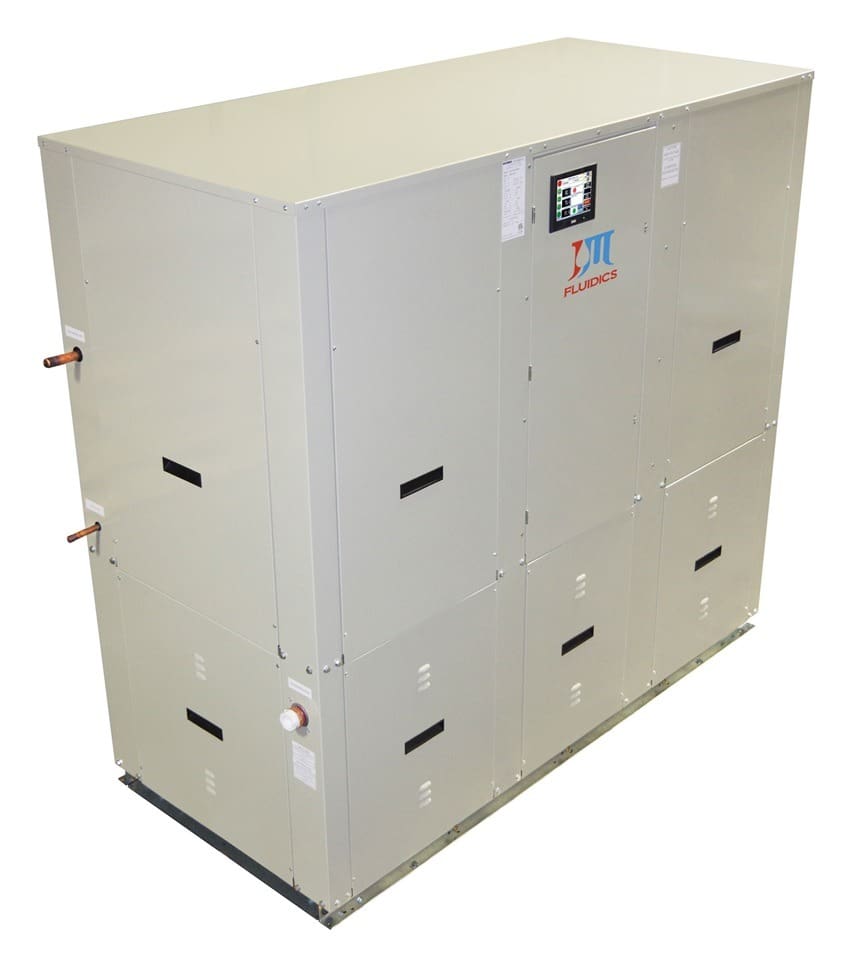

Split-System Air-Cooled Scroll Chillers with Stainless Steel Tank
Every J&M Fluidics Model Is Put Through an Extensive Performance Test Before It Leaves the Factory!
Model Shown
IEZAT9S (Showing refrigerant discharge line, refrigerant liquid line, and process fluid inlet)
Model Shown

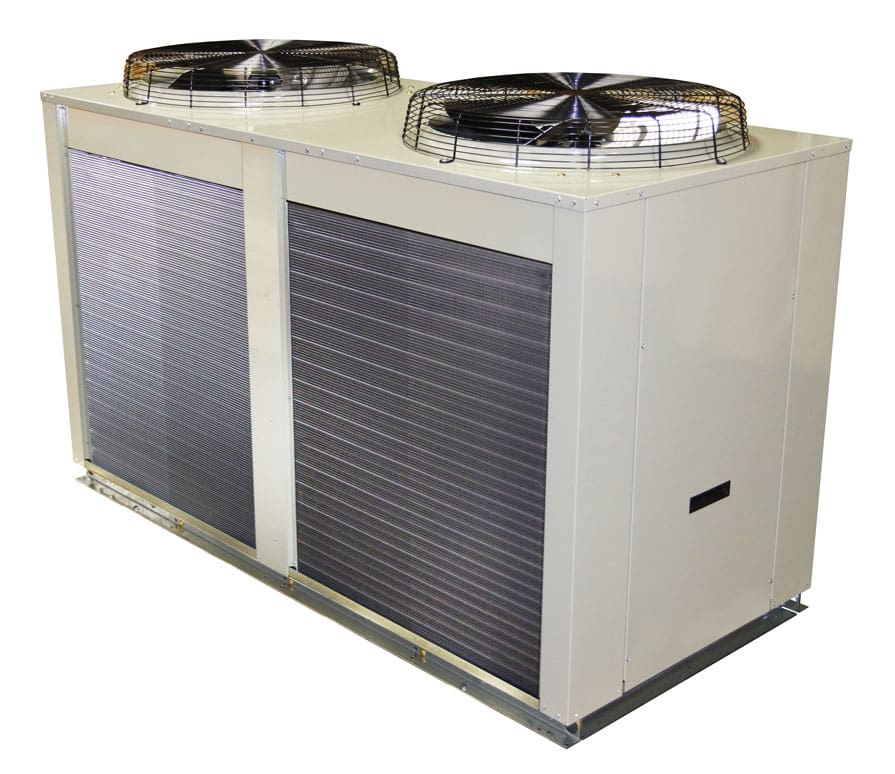

OC9SG5 (Outdoor Condenser)
Model Shown
OC9SG5 (Showing Reverse Side)
Split-System Air-Cooled Chillers – without Tank
(Indoor Process Chiller with Outdoor Condenser)
Model Shown
IEZA15DF5 (Indoor Process Chiller)

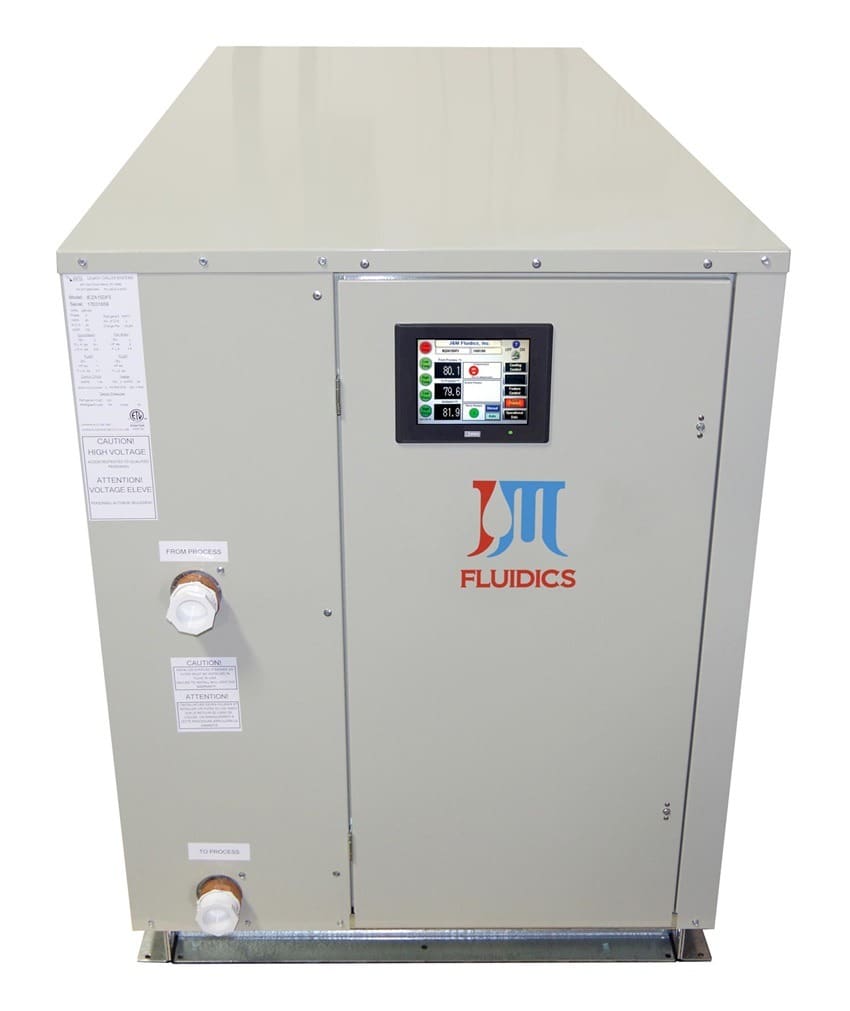

Front View
Easy to use HMI touch screen mounted on electrical cabinet door for quick access

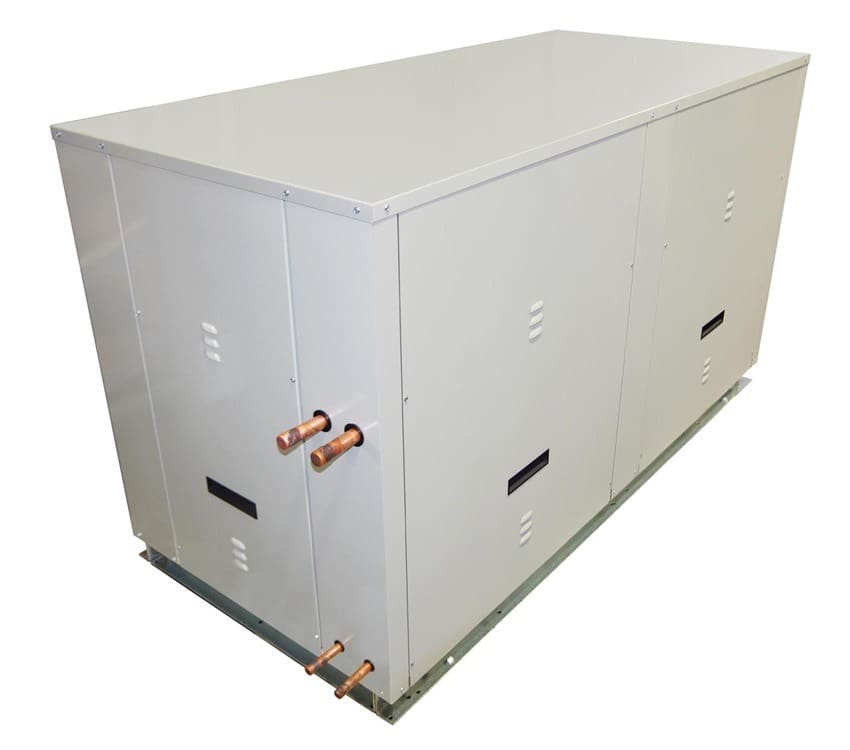

Back Side View
Showing Refrigerant Discharge lines (top) and Refrigerant Liquid Lines (bottom)

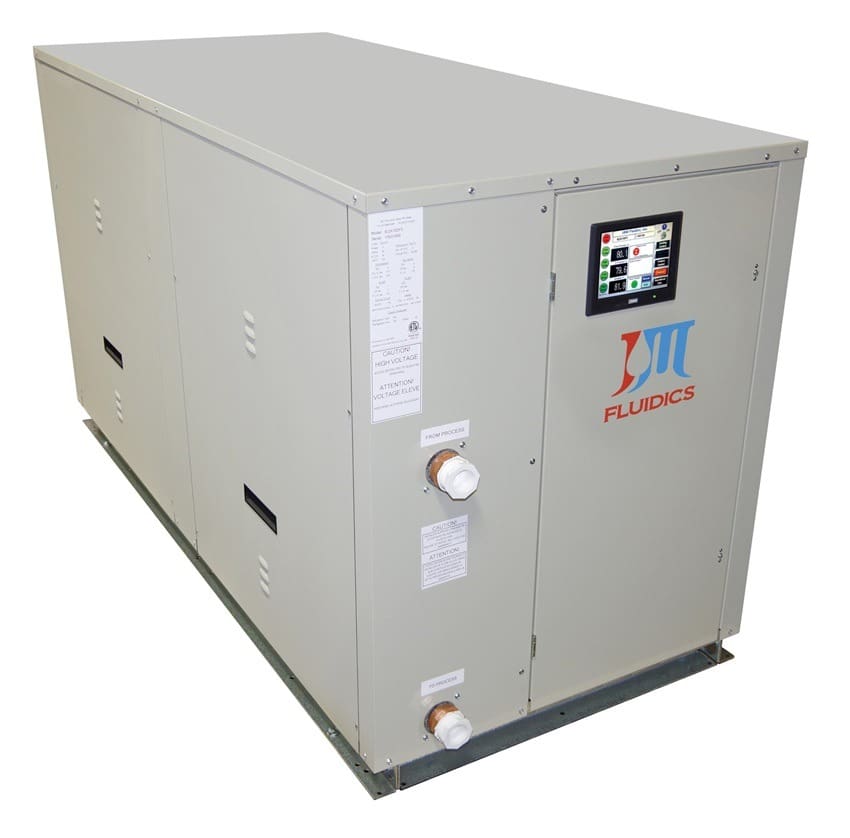

Side Front View
With Process Fluid In (top tube) and Process Fluid Out (bottom tube) shown

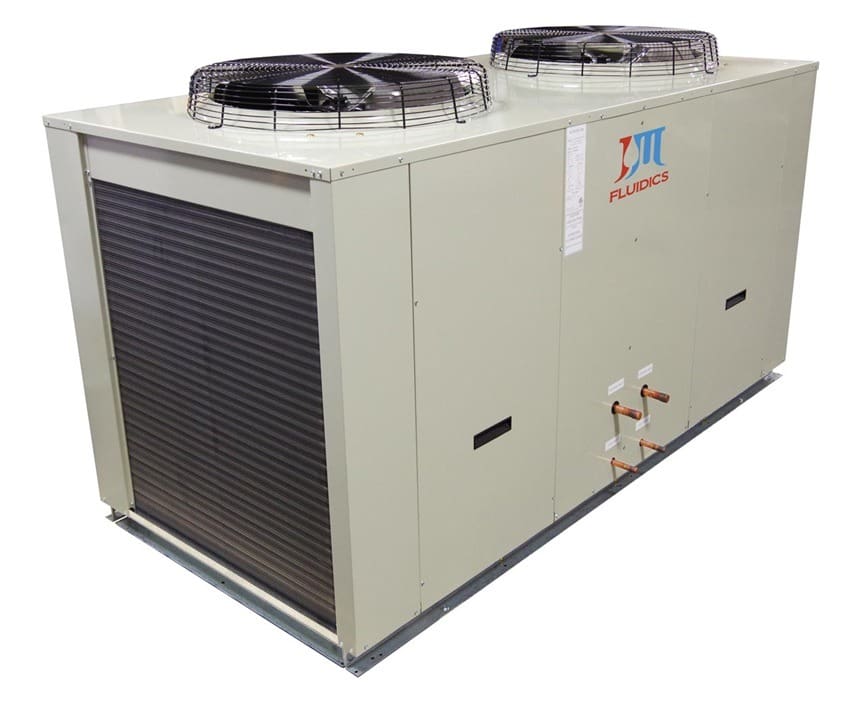

Model Shown OC15DE5 (Outdoor Condenser)

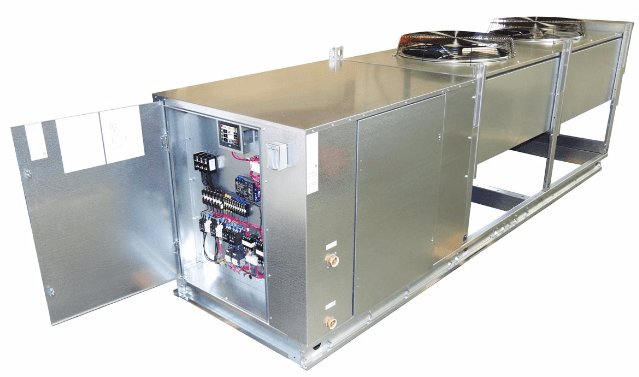

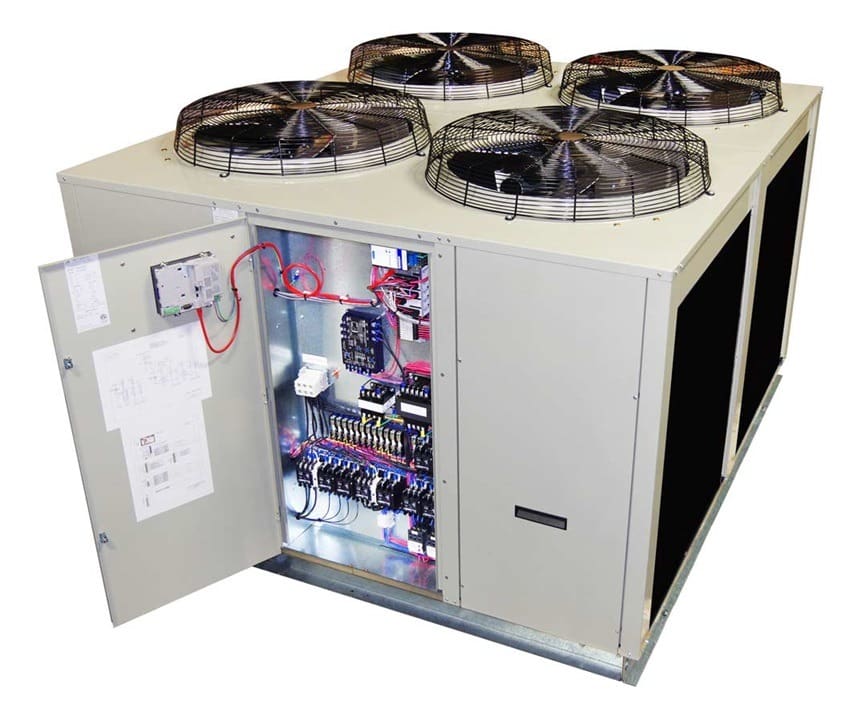

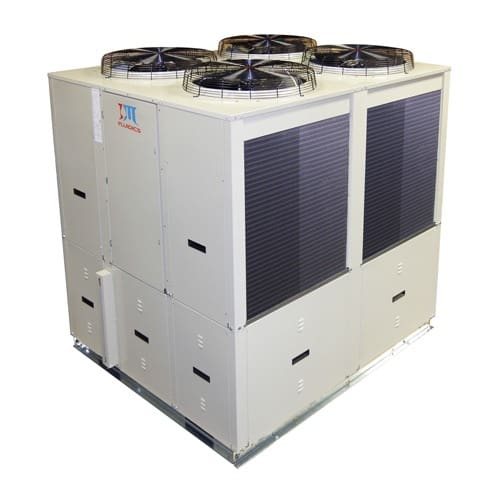

Packaged Air-Cooled 22 Ton Chiller with Stainless Steel Tank
Model Shown
PZAT22D with optional fluid sight glass
Model Shown

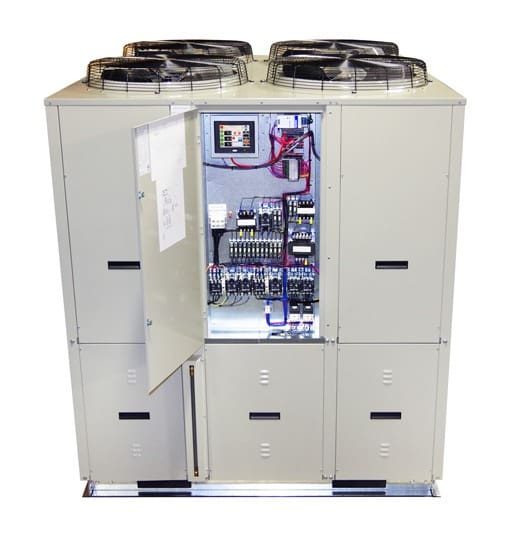

PZAT22D Pristine Electrical Cabinet Wiring
PZA22D

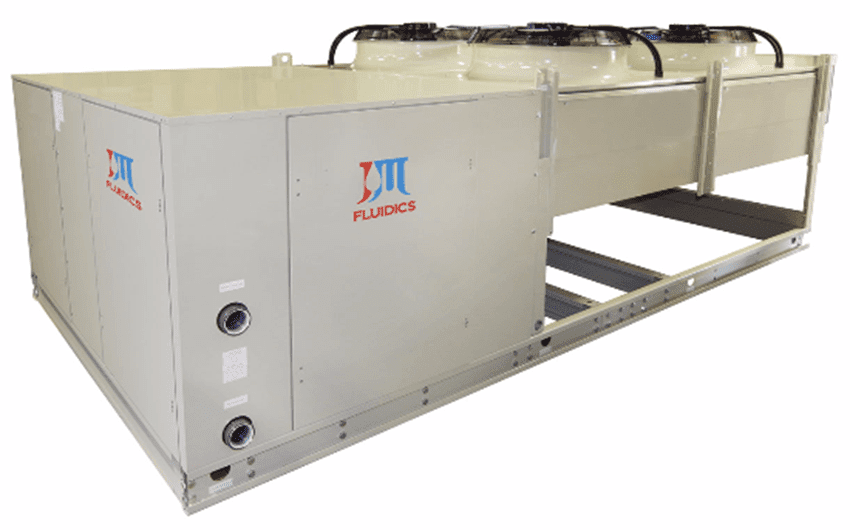

Standard Packaged Chiller Up to 105º
PZA22D
“High Ambient” Design Up to 125º
Custom Model

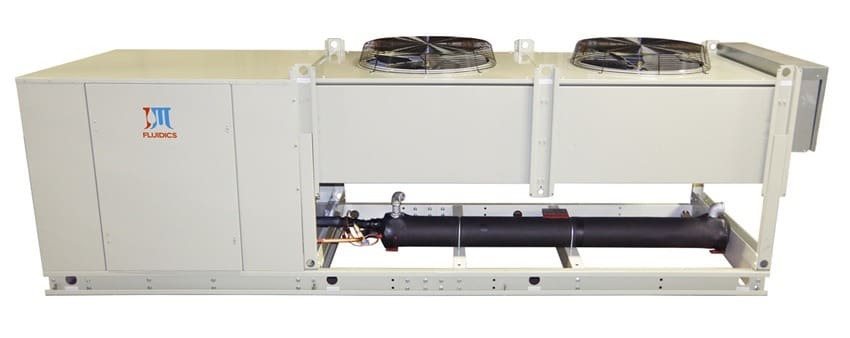

PZA14SL6 (13 Ton Air-Cooled Chiller) – with Shell & Tube Evaporator Shown with Optional Custom Painted Color (Powder Coated)
Custom Model

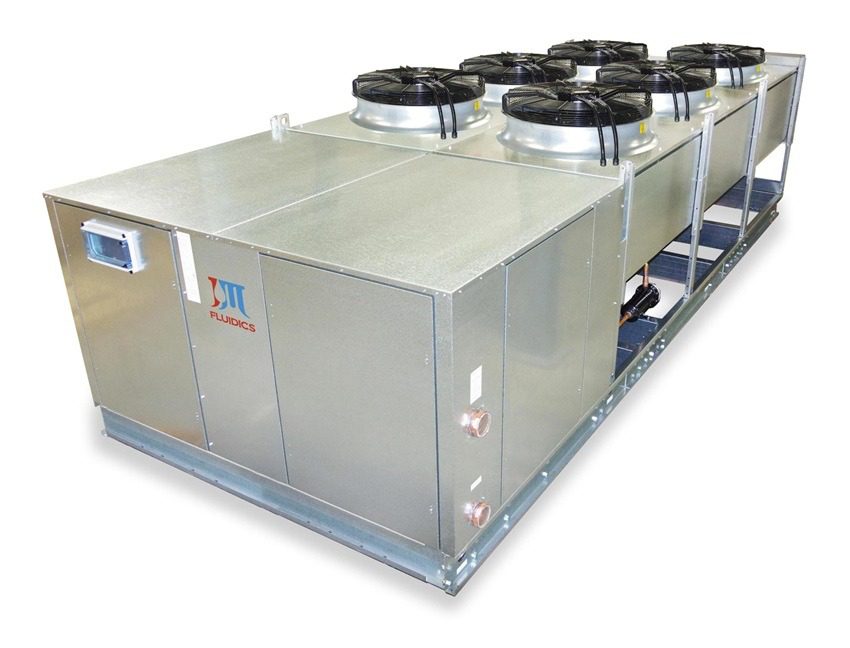

PZA100M 100 Ton, Air-Cooled (4) Scroll Compressor Chiller Shown with ECM Fan Motors with Above User-Friendly Touchscreen Display and Weather Prod Cover
J&M Fluidics R513A Chiller Models
Packaged Air-Cooled Process Chillers,
Single, Dual, and Quad Circuit Scroll, Tankless
| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| PZA1S | 14,950 | 36 | 34 | 44 | 260 | 1 | 1 |
| PZA2.5S | 29,600 | 36 | 34 | 44 | 265 | 1 | 2.5 |
| PZA3S | 37,800 | 36 | 34 | 44 | 450 | 1 | 3.5 |
| PZA3.5S | 42,500 | 36 | 34 | 44 | 475 | 1 | 3.5 |
| PZA4S | 45,000 | 46 | 34 | 48 | 490 | 1 | 4.0 |
| PZA4.5S | 56,700 | 46 | 34 | 48 | 500 | 1 | 4.5 |
| PZA5.5S | 65,400 | 75 | 34 | 50 | 650 | 1 | 5.5 |
| PZA6.5S | 76,700 | 75 | 34 | 50 | 650 | 1 | 6.5 |
| PZA8S | 98,100 | 75 | 34 | 50 | 690 | 1 | 8.0 |
| PZA10S | 117,000 | 75 | 34 | 50 | 750 | 1 | 10.0 |
| PZA13S | 153,000 | 75 | 34 | 50 | 800 | 1 | 13.0 |
| PZA7D | 85,000 | 75 | 34 | 50 | 875 | 2 | 3.5 |
| PZA8D | 90,000 | 75 | 34 | 50 | 900 | 2 | 4.0 |
| PZA9D | 113,400 | 75 | 34 | 50 | 950 | 2 | 4.5 |
| PZA11D | 130,800 | 85 | 40 | 50 | 985 | 2 | 5.5 |
| PZA13D | 153,400 | 85 | 40 | 50 | 1000 | 2 | 6.5 |
| PZA16D | 196,200 | 85 | 40 | 50 | 1000 | 2 | 8.0 |
| PZA20D | 234,000 | 75 | 66 | 51 | 1150 | 2 | 10.0 |
| PZA26D | 306,000 | 176.5 | 45.5 | 55 | 2600 | 2 | 13.0 |
| PZA32D | 385,000 | 176.5 | 88 | 55 | 4800 | 2 | 16.0 |
| PZA38D | 458,000 | 176.5 | 88 | 55 | 4900 | 2 | 19.0 |
| PZA18M | 226,800 | 176.5 | 45.5 | 55 | 3490 | 4 | 4.5 |
| PZA26M | 206,800 | 176.5 | 88 | 55 | 4800 | 4 | 6.5 |
| PZA32M | 392,400 | 176.5 | 88 | 55 | 4800 | 4 | 8.0 |
| PZA40M | 468,000 | 176.5 | 88 | 55 | 5100 | 4 | 10.0 |
| PZA52M | 612,000 | 176.5 | 88 | 55 | 5100 | 4 | 13.0 |
| PZA64M | 770,000 | 230 | 88 | 57 | 6700 | 4 | 16.0 |
| PZA76M | 916,000 | 230 | 88 | 57 | 7100 | 4 | 19.0 |
Packaged Air-Cooled Process Chillers with Stainless Steel Tank,
Single and Dual Circuit Scroll
| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| PZAT1S | 10,950 | 36 | 34 | 68 | 550 | 1 | 1 |
| PZAT2S | 22,300 | 36 | 34 | 68 | 650 | 1 | 2.0 |
| PZAT3S | 33,300 | 36 | 34 | 68 | 800 | 1 | 3 |
| PZAT3.5S | 38,500 | 36 | 34 | 68 | 825 | 1 | 3.5 |
| PZAT4.5S | 48,600 | 46 | 34 | 74 | 850 | 1 | 4.5 |
| PZAT5S | 54,400 | 46 | 34 | 74 | 875 | 1 | 5.0 |
| PZAT5.5S | 57,800 | 46 | 34 | 74 | 900 | 1 | 5.5 |
| PZAT6.5S | 72,800 | 75 | 34 | 76 | 1100 | 1 | 6.5 |
| PZAT7.5S | 83,000 | 75 | 34 | 76 | 1125 | 1 | 7.5 |
| PZAT9S | 100,500 | 75 | 34 | 76 | 1150 | 1 | 9.0 |
| PZA11S | 123,500 | 75 | 34 | 76 | 1300 | 1 | 11.0 |
| PZAT12.5S | 141,000 | 75 | 34 | 76 | 1400 | 1 | 12.5 |
| PZAT7D | 77,000 | 75 | 34 | 76 | 1100 | 2 | 3.5 |
| PZAT9D | 97,200 | 75 | 34 | 76 | 1200 | 2 | 4.5 |
| PZAT10D | 108,800 | 75 | 34 | 76 | 1250 | 2 | 5.0 |
| PZAT11D | 115,600 | 75 | 34 | 76 | 1250 | 2 | 5.5 |
| PZAT13D | 145,600 | 85 | 40 | 76 | 1300 | 2 | 6.5 |
| PZAT15D | 166,000 | 85 | 40 | 76 | 1400 | 2 | 7.5 |
| PZAT18D | 201,000 | 85 | 40 | 76 | 1450 | 2 | 9.0 |
| PZAT22D | 247,000 | 75 | 66 | 76 | 2200 | 2 | 11.0 |
Tankless Split-System Air-Cooled Process Chillers,
Single, Dual, and Quad Circuit Scroll
| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| IEZA1S | 11,700 | 44 | 28 | 36 | 225 | 1 | 1 |
| IEZA2S | 23,700 | 44 | 28 | 36 | 370 | 1 | 2.0 |
| IEZA3S | 35,500 | 44 | 28 | 36 | 500 | 1 | 3 |
| IEZA3.5S | 41,100 | 44 | 28 | 36 | 525 | 1 | 3.5 |
| IEZA4.5S | 51,700 | 44 | 28 | 36 | 55 | 1 | 4.5 |
| IEZA5S | 57,900 | 44 | 28 | 36 | 575 | 1 | 5.0 |
| IEZA5.5S | 57,900 | 44 | 28 | 36 | 600 | 1 | 5.5 |
| IEZA6.5S | 77,500 | 44 | 28 | 36 | 700 | 1 | 6.5 |
| IEZA7.5S | 88,400 | 44 | 28 | 36 | 725 | 1 | 7.5 |
| IEZA9S | 107,000 | 44 | 28 | 36 | 750 | 1 | 9.0 |
| IEZA11S | 132,000 | 44 | 28 | 36 | 825 | 1 | 11.0 |
| IEZA12.5 | 149,500 | 44 | 28 | 36 | 850 | 1 | 12.5 |
| IEZA7D | 82,200 | 65 | 30 | 37 | 900 | 2 | 3.5 |
| IEZA9D | 103,400 | 65 | 30 | 37 | 1000 | 2 | 4.5 |
| IEZA10D | 115,800 | 65 | 30 | 37 | 1100 | 2 | 5.0 |
| IEZA11D | 123,000 | 65 | 30 | 37 | 1200 | 2 | 5.5 |
| IEZA13D | 155,000 | 65 | 30 | 37 | 1400 | 2 | 6.5 |
| IEZA15D | 176,800 | 65 | 30 | 37 | 1450 | 2 | 7.5 |
| IEZA18D | 214,000 | 65 | 30 | 37 | 1450 | 2 | 9.0 |
| IEZA22D | 264,000 | 65 | 30 | 37 | 1750 | 2 | 11.0 |
| IEZA25D | 299,000 | 85 | 34 | 42 | 1500 | 2 | 12.5 |
| IEZA14M | 164,400 | 85 | 34 | 42 | 1800 | 4 | 3.5 |
| IEZA18M | 206,800 | 85 | 34 | 42 | 1850 | 4 | 4.5 |
| IEZA22M | 246,000 | 85 | 34 | 45 | 1900 | 4 | 5.5 |
| IEZA26M | 310,000 | 85 | 34 | 45 | 2200 | 4 | 6.5 |
| IEZA30M | 353,600 | 85 | 34 | 45 | 2300 | 4 | 7.5 |
| IEZA36M | 428,000 | 85 | 34 | 45 | 2400 | 4 | 9 |
| IEZA44M | 528,000 | 112 | 40 | 42 | 2500 | 4 | 11 |
| IEZA50M | 598,000 | 112 | 40 | 42 | 3000 | 4 | 12.5 |
Air-cooled process chiller capacities based on
ARI standard 45°F LWT and 95°F AMB.
Split-System Air-Cooled Process Chillers, with Stainless Steel Tank
Single and Dual Circuit Scroll
| Model Number | Nominal BTUH @ 45°F | Length (In.) | Width (In.) | Height (In.) | Weight | Compressor | |
|---|---|---|---|---|---|---|---|
| Qty. | HP | ||||||
| IEZAT1S | 10,950 | 36 | 34 | 65 | 550 | 1 | 1 |
| IEZAT2S | 22,300 | 36 | 34 | 65 | 650 | 1 | 2.0 |
| IEZAT3S | 33,300 | 36 | 34 | 65 | 800 | 1 | 3 |
| IEZAT3.5S | 38,500 | 36 | 34 | 65 | 825 | 1 | 3.5 |
| IEZAT4.5S | 48,600 | 46 | 34 | 69 | 850 | 1 | 4.5 |
| IEZAT5S | 54,400 | 46 | 34 | 69 | 875 | 1 | 5.0 |
| IEZAT5.5S | 57,800 | 46 | 34 | 69 | 900 | 1 | 5.5 |
| IEZAT6.5S | 72,800 | 75 | 34 | 70 | 1100 | 1 | 6.5 |
| IEZAT7.5S | 83,000 | 75 | 34 | 70 | 1150 | 1 | 7.5 |
| IEZAT9S | 91,800 | 75 | 34 | 70 | 1250 | 1 | 9.0 |
| IEZAT11S | 123,500 | 75 | 34 | 70 | 1300 | 1 | 11.0 |
| IEZAT12.5S | 141,000 | 75 | 34 | 70 | 1325 | 1 | 12.5 |
| IEZAT7D | 77,000 | 75 | 34 | 70 | 1350 | 2 | 3.5 |
| IEZAT9D | 97,200 | 75 | 34 | 70 | 1400 | 2 | 4.5 |
| IEZAT10D | 108,800 | 75 | 34 | 70 | 1450 | 2 | 5.0 |
| IEZAT11D | 115,600 | 75 | 34 | 70 | 1500 | 2 | 5.5 |
| IEZAT13D | 145,600 | 75 | 34 | 70 | 1700 | 2 | 6.5 |
| IEZAT15D | 166,000 | 85 | 34 | 70 | 1800 | 2 | 7.5 |
| IEZAT18D | 201,000 | 85 | 34 | 70 | 1900 | 2 | 9.0 |
| IEZAT22D | 247,000 | 85 | 34 | 70 | 2100 | 2 | 11.0 |
Air-cooled process chiller capacities based on
ARI standard 45°F LWT and 95°F AMB.
